Code: 586539

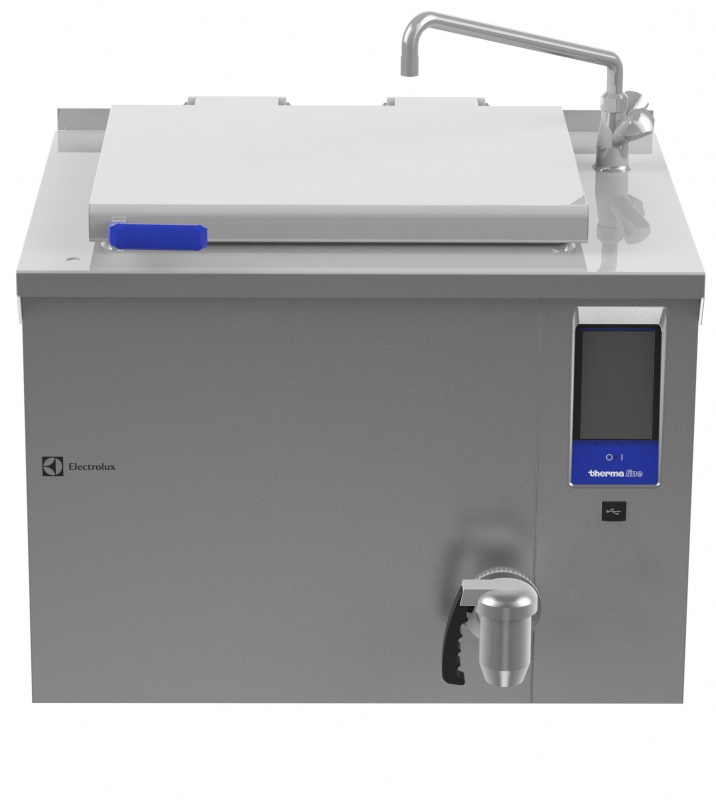

Electrolux Professional PBEN20ELEM EL.BOILING PAN+TAP,RECT,200L(H),BS,D=900 (Code 586539, Alias 9CHG586539)

Product

Electrolux Professional PBEN20ELEM Product Features

AISI 304 stainless steel construction. Vessel with rounded edges in AISI 316 stainless steel. Insulated and counterbalanced lid. Water mixing unit included. Unit to include food tap.Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Standing against a wall. Installation options (not included): floor mounted on 200mm high feet or a plinth which can be either steel or masonry construction.

Buy Electrolux Professional PBEN20ELEM EL.BOILING PAN+TAP,RECT,200L(H),BS,D=900 (Code 586539) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBEN20ELEM Specifications

Brand: Electrolux Professional
Model: PBEN20ELEM
WxDxH mm: 1000x900x700 mm
Weight: 200 Kg
Alias: 9CHG586539
Factory Model: PBEN20ELEM
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1000
Net Depth: 900
Net Height: 700
Electrical power: 30 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBEN20ELEM Documents

Data Sheet: Electric Rectangular Boiling Pan, 200lt Hygienic Profile, Backsplash + Tap
Range Overview: ProThermetic Accessories Range Overview
Brochure: thermaline Book
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586539
Spare Parts Catalogue: 586539
BIM/Revit: 586539

Shipping status

Electrolux Professional PBEN20ELEM Shipping status

Upon Request

Electrolux Professional PBEN20ELEM (586539)

Install the Electrolux Professional PBEN20ELEM (586539) machine to complement any kitchen set up and get into the cooking of healthy food.

Even though the device has a set of professional functions, every customer will be pleased with the simple interface.

Main features:

Touch panel with backlight for easy access to the versatile settings of the machine;
The device comes with pre-installed cooking presets for different scenarios;
Store your own settings or presets in the in-built storage;
In-built water tap makes the device even more autonomic;
The machine allows controlling the water level via the in-built safety thermostat;
The pressure is always on the appropriate level due to the controlled supply of hot saturated steam;
You cannot overcook any dish because the steam heats the food evenly;
The lid of the chamber is counterbalanced.
