Code: 588331

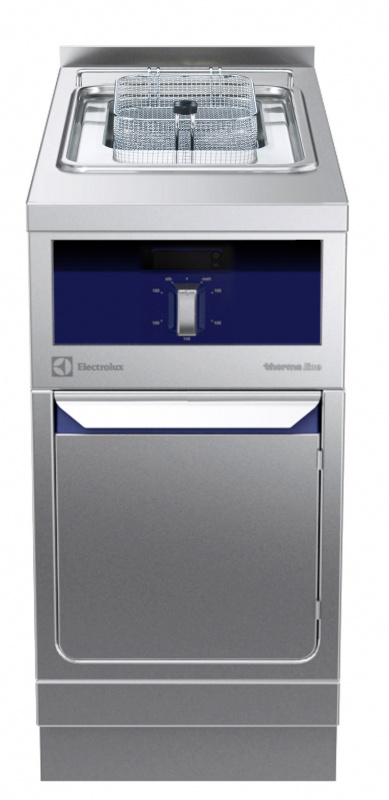

Electrolux Professional MAFGFBDDAO EL.DEEP FRYER,1X14L,1S,BSPL,400X800X800H (Code 588331, Alias 9CHG588331)

Product

Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Appliance designed to deep fry meat, fish and vegetables (french fries). Deep drawn V-shaped well with external heating elements to facilitate cleaning operations. Indirect oil heating system and uniform heat distribution for extended oil life. Electronic sensor for precise oil temperature control. Reduced power setting to melt solid fat. Oil can be easily drained via a ball-valve. All-round basin raised edges to protect against soil infiltration. Large overflow stamped area around the well. Overheat protection switches off the supply in case of overheating. Standby function saves energy and quickly recovers maximum power. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. IPX5 water resistant certification. Configuration: Freestanding, one-side operated with backsplash.

Buy Electrolux Professional MAFGFBDDAO EL.DEEP FRYER,1X14L,1S,BSPL,400X800X800H (Code 588331) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Brand: Electrolux Professional
Model: MAFGFBDDAO
WxDxH mm: 400x800x800 mm
Weight: 65 Kg
Alias: 9CHG588331
Factory Model: MAFGFBDDAO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 400
Net Depth: 800
Net Height: 800
Electrical power: 10 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Data Sheet: thermaline 80 - 14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side, Backsplash, H=800
Range Overview: thermaline Modular 80
Brochure: thermaline Book
CAD Drawings: 588331
Spare Parts Catalogue: 588331
BIM/Revit: 588331

Shipping status

Upon Request

EL.DEEP FRYER,1X14L,1S,BSPL,400X800X800H (Code 588331)

Electrolux Professional MAFGFBDDAO (588331)

The Electrolux Professional fryer MAFGFBDDAO (588331) is designed for frying various products in a bath of boiling oil, such as French fries in canteens, restaurants, fast food outlets.

Equipped with the latest technological innovations, the thermaline Modular 85 modules allow you to reach new heights of performance while significantly reducing energy consumption. For example, the unique Ecotop coating provides an energy reduction of up to 35%. The flame on the petal flame burners (patent pending) adjusts to the diameter of the cookware, and this reduces gas consumption by up to 65%.

Main features

Number of tubs: 1,
Bath capacity: 14L,
Bathtub shape: V-shape,
Overheat protection,
Easy to maintain and operate,
Safety thermostat,
Pressed overflow zone with an enlarged perimeter of a bathtub,
Ingress Protection Index IPX4,
Microwaveable fat-melting mode,
Seamless work surface,
Robust and durable,
Fully compliant with current quality standards for cooking equipment,
