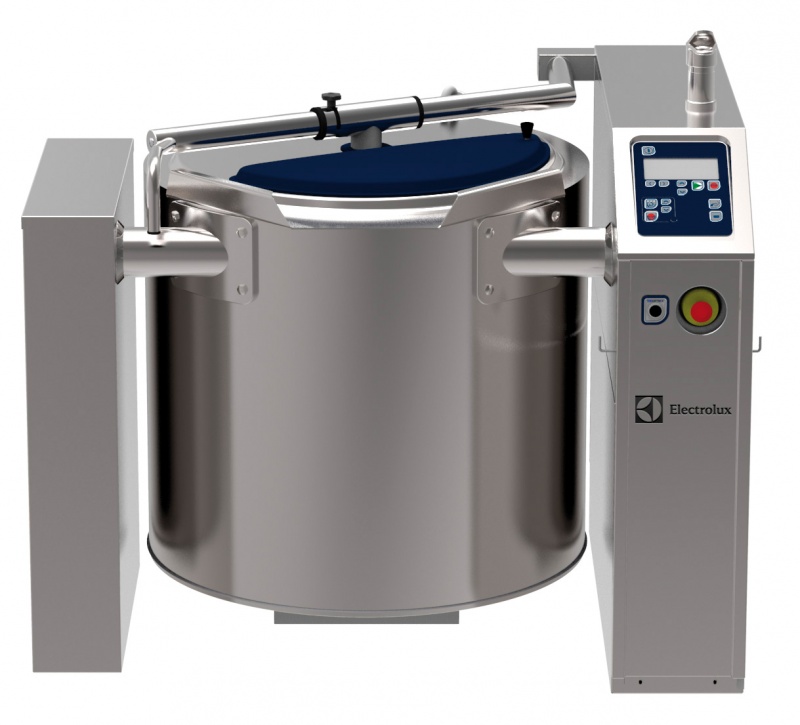

Electrolux Professional SM6P200 EL.PAN+STIRRER 200 LTH=600, PROMIX (Code 232230, Alias 9AIX232230)
Electrolux Professional SM6P200 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. Hig flow propeller mixes at speeds up to 170 rpm (100-150 litres) and up to 140 rpm (200-300 litres). Continuous rotating in one direction for easier use. Step program facilitates removal of food. High thermal input and fast heat up. Electronic SMART control with possibility to store 50 programs; error message facility; display with: cooking time and temperature, water filling. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed termal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6P200 EL.PAN+STIRRER 200 LTH=600, PROMIX (Code 232230) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6P200 Specifications
- Brand: Electrolux Professional
- Model: SM6P200
- WxDxH mm: 1345x1070x1050 mm
- Weight: 415 Kg
- Alias: 9AIX232230
- Factory Model: SM6P200
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 415.00 kg
- Net Width: 1345
- Net Depth: 1070
- Net Height: 1050
- Europe Weight: 445.00 Kg
- Europe Width: 1,550 mm
- Europe Height: 1,350 mm
- Overseas Weight: 445.00 Kg
- Overseas Depth: 1,370 mm
- Overseas_Height: 1,350 mm
- Electrical power: 40 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6P200 Documents
- Data Sheet: Promix Electric Boiling Pan with Stirrer 200lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232230
- CAD Drawings: 232230
- BIM/Revit: 232230
Electrolux Professional SM6P200 Shipping status
Upon Request
Electrolux Professional SM6P200 (232230)
Discover upgraded cooking facilities with the hottest Electrolux Professional offerings and an electric boiling pan with a stirrer Electrolux Professional SM6P200 (232230).
A 200l cooking capacity will allow you to cover multiple processes with low energy waste and safety guaranteed.
Main Features
- Constructed in stainless steel;
- Pan with rounded edges in stainless steel;
- Thermal insulation for speedy heating and cool exterior;
- Saturated steam heating system (120° C) and automatized deaeration;
- A safety thermostat to prevent the low level of water;
- Valve to monitor the steam pressure;
- Motorized tilting up to 90° C with 600mm height;
- Programmable water-filling process;
- High-flow propeller speed 140 rpm;
- Continuous single-direction rotating;
- Smart control and an electronic display for main and additional settings monitoring and handling.
Electrolux Professional SM6P200 Price
Maran Projekt GmbH is your reliable advisor on the best Electrolux Professional goods and services who will deliver you an electric boiling pan with a stirrer Electrolux Professional SM6P200 (232230) at a discounted price.
A well-trained English or German-speaking support team will assist you in ordering and purchasing top equipment 24/7.
