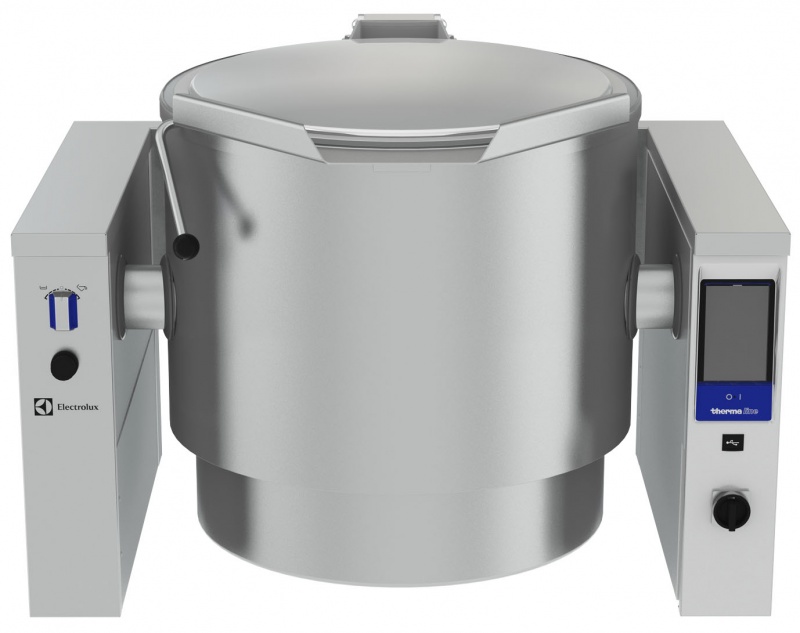

Electrolux Professional PBOT30RHEO EL.BOILING PAN/STIR,TILT,300L(S)FS,D1000 (Code 586035, Alias 9CHG586035)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT30RHEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Stirring rotation speed 21rpm. Stirrer drive shaft included, stirrer blades to be ordered separately. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 100mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT30RHEO EL.BOILING PAN/STIR,TILT,300L(S)FS,D1000 (Code 586035) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT30RHEO Specifications

Brand: Electrolux Professional
Model: PBOT30RHEO
WxDxH mm: 1500x1000x800 mm
Weight: 430 Kg
Alias: 9CHG586035
Factory Model: PBOT30RHEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1500
Net Depth: 1000
Net Height: 800
Electrical power: 36 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT30RHEO Documents

Data Sheet: Electric Tilting Boiling Pan, 300lt , Freestanding with Stirrer
Range Overview: ProThermetic Accessories Range Overview
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586035
Spare Parts Catalogue: 586035
BIM/Revit: 586035

Shipping status

Electrolux Professional PBOT30RHEO Shipping status

Upon Request

Electrolux Professional PBOT30RHEO (586035)

Make your professional kitchen production breakthrough together with Electrolux Professional and a tilting electric boiling pan with a stirrer Electrolux Professional PBOT30RHEO (586035).

An enhanced cooking capacity delivers even more delight along with modernized solutions and safety measures on top.

Main Features

Sustainable construction;
High-resistant vessel with safety means;
Motorized tilting up to 90°C with alterable speed;
Base and side-walls heating system via saturated steam (up to 125°C) and automatic deaeration;
21rpm rotating speed stirrer;
With stirrer drive shaft, blades to be ordered;
Safety valve to keep from steam overpressure;
Safety thermostat to prevent low water level;
TOUCH control panel;
SOFT function;
Advanceable cooking conditions with a built-in temperature sensor;
Single or multiphase cooking with temperature modes and recipes to apply;
Standing against the wall or free-standing.

Electrolux Professional PBOT30RHEO Price

Maran Projekt GmbH is your supportive agent in cooperation with Electrolux Professional and a tilting electric boiling pan Electrolux Professional PBOT30RHEO (586035) at a marvellous price.

Instant help will arrive 24/7 from English or German-speaking experts.
