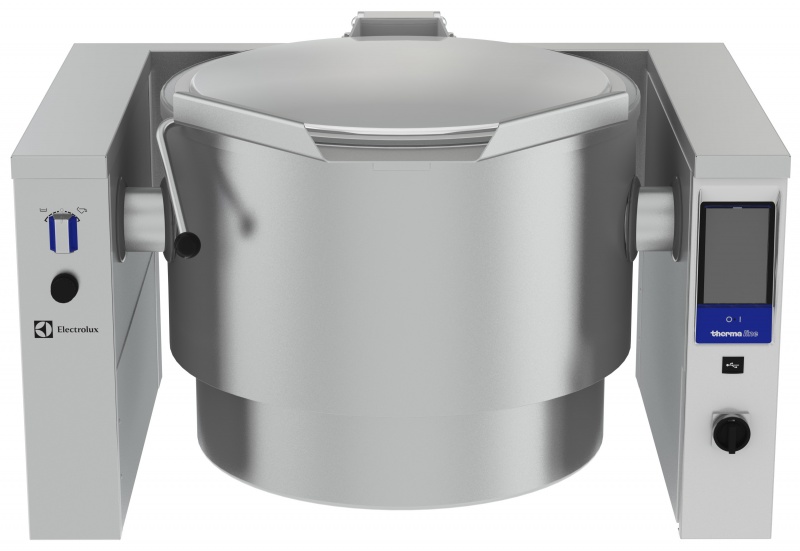

Electrolux Professional PBOT10GCCO GAS BOILING PAN,ELEC,TILT,100L(H)FS,D900 (Code 586109, Alias 9CHG586109)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT10GCCO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Pressure burners. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 200mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT10GCCO GAS BOILING PAN,ELEC,TILT,100L(H)FS,D900 (Code 586109) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT10GCCO Specifications

Brand: Electrolux Professional
Model: PBOT10GCCO
WxDxH mm: 1200x900x700 mm
Weight: 230 Kg
Alias: 9CHG586109
Factory Model: PBOT10GCCO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1200
Net Depth: 900
Net Height: 700
Voltage: 230 V
Frequency: 50/60 Hz
Phases: 1N
Gas power: 21 Kw

Documents

Electrolux Professional PBOT10GCCO Documents

Data Sheet: Gas Tilting Boiling Pan 100lt Freestanding, Hygienic Profile
Range Overview: ProThermetic Accessories Range Overview
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
Spare Parts Catalogue: 586109
CAD Drawings: 586109
BIM/Revit: 586109

Shipping status

Electrolux Professional PBOT10GCCO Shipping status

Upon Request

Electrolux Professional PBOT10GCCO (586109)

Feel comfortable and successful at your professional kitchen with premium Electrolux Professional equipment and a tilting electric gas boiling pan Electrolux Professional PBOT10GCCO (586109).

An electric pan will cover several professional processes at once and save your time and efforts.

Main Features

Stainless steel construction;
Deep-drawn vessel with rounded edges;
Motorized tilting up to 90°C with several speed modes;
Uniform heating system via saturated steam (up to 125°C in the jacket) and automatic deaeration;
21rpm stirrer with drive shaft included, orderable blades;
Electronic ignition robust burners;
Safety valve to keep from steam overpressure;
Safety thermostat to keep from low water level;
TOUCH control panel;
SOFT function;
Temperature sensors;
Cooking in single or multiphase mode with settable temperature and recipes;
Standing against the wall or free-standing.

Electrolux Professional PBOT10GCCO Price

Maran Projekt GmbH is your reliable provider of Electrolux Professional goods and services and a tilting electric boiling pan Electrolux Professional PBOT10GCCO (586109) at an accessible price.

Support representatives will assist you in English or German around the day.
