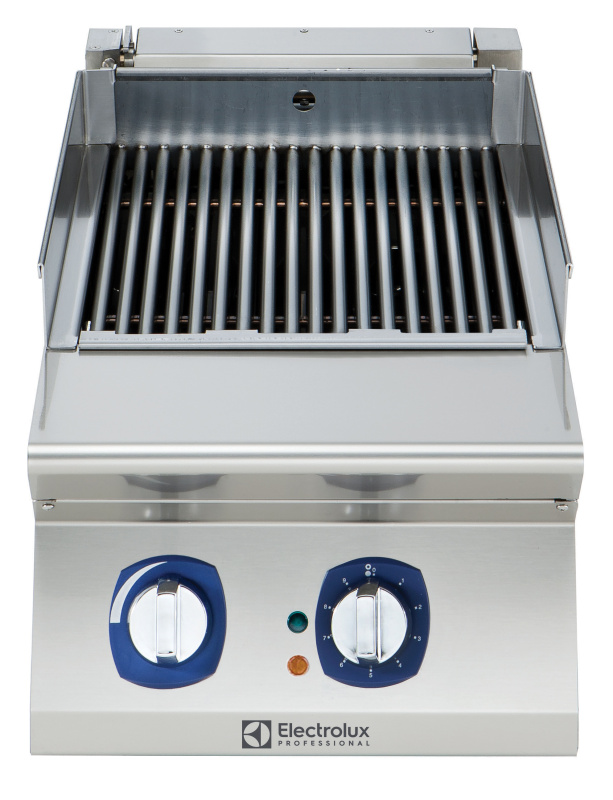

Electrolux Professional E7JJCHAOMCG Modular Cooking Range Line 700XP Electric Grill Top HP 400mm (Marine) (Code 371305)
Half module electric Grill Top HP (high performance). Heating via incoloy armoured heating elements positioned under removable cooking grid, integrated water tap, fixed well with drain, heat boost deflectros, WRAS - marine. Each bank of elements has an independent power regulation through a control knob. Water must be added to well before operation.
Buy Electrolux Professional E7JJCHAOMCG Modular Cooking Range Line 700XP Electric Grill Top HP 400mm (Marine) (Code 371305) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: E7JJCHAOMCG
- Weight: 39 kg
- Country of origin: Italy
- Net Width: 400 mm
- Net Depth: 730 mm
- Net Height: 250 mm
- Electrical power: 3.75 kW
- Voltage: 400 V/3 ph/50/60 Hz
- Data Sheet: 371305
- Range Overview: RAN-9JE00011
- User Maintenance: 05UMA__J01ENG0ELTHP
- Spare Parts Catalogue: 59785UW00
- CAD Drawings: 371305
- BIM/Revit: 371305
Orderable
Electrolux Professional E7JJCHAOMCG 700XP Electric Grill Top HP 400mm (Marine) (Code 371305)
Not every galley has room for a full-width grill station, and a smaller vessel often needs to fit a searing surface into a cook line already crowded with boiling tops, fryers, and ovens. The Electrolux Professional E7JJCHAOMCG 700XP Electric Grill Top HP 400mm (Marine) (Code 371305) is the compact end of Electrolux Professional's marine grill range, a single 400 mm module that slots between other 700XP units without eating up space the rest of the line needs.
Scaled down does not mean stripped down: the same removable AISI 441 stainless steel grid sits over incoloy heating elements that tilt 90° for cleaning, and the unit still runs as a wet grill, with an integrated water tap feeding the well and a filtered drain carrying off grease as service goes on. At 3.75 kW, power draw stays modest, useful on a vessel where every circuit on the electrical panel is already accounted for. A LED warning light still flags an empty well before it becomes a cleaning problem, and WRAS compliance covers the water side just as it does across the rest of the range.
Specifications
- 345 mm wide cooking surface on a removable, 2 mm AISI 441 stainless steel U-shaped grid;
- Compact 400 mm chassis, the smallest module in the 700XP marine grill line;
- Incoloy armoured heating elements under the cooking grid, tilt 90° for cleaning;
- Fixed well with drain collects cooking juices and grease during service;
- Large drain protected by overflow and filter;
- Integrated water filling tap with knob control, water added to the well before operation;
- Removable stainless steel heat deflectors reduce cooking time;
- Stainless steel splash guards on both sides, removable for cleaning;
- LED warning indicator alerts when the well runs empty;
- WRAS compliant water system;
- 400V/3ph electrical supply, 3.75 kW maximum power;
- Heavy-duty 2 mm stainless steel worktop, 730 mm deep;
- Includes a scraper for the grill surface as standard.
Electrolux Professional E7JJCHAOMCG 700XP Electric Grill Top HP 400mm (Marine) (Code 371305) Price
Maran Projekt GmbH quotes the Electrolux Professional E7JJCHAOMCG 700XP Electric Grill Top HP 400mm (Marine) (Code 371305) price for smaller vessels and tight galley fit-outs anywhere in the world, with delivery arranged to suit the build.
Our specialists focus solely on Electrolux Professional equipment and bring 25 years of experience to marine projects for clients across six continents, from small charter yachts to full commercial fleets. We correspond in English and German daily, add other languages when needed, and hand over free manuals for this grill and every other Electrolux Professional model on request.
