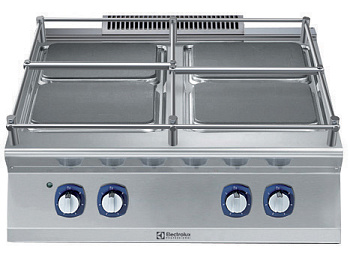

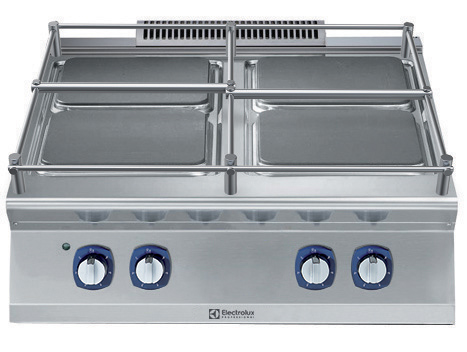

Electrolux Professional E9ECMH4Q05 Modular Cooking Range Line 900XP 4-Hot Plates Electric Boiling Top Range - Marine (Code 391182)

Electrolux Professional E9ECMH4Q05 900XP 4-Hot Plates Electric Boiling Top Range - Marine (Code 391182)

Feeding a full crew or a ship's passenger complement means several pots working at once, and a two-plate top runs out of room fast. The Electrolux Professional E9ECMH4Q05 900XP 4-Hot Plates Electric Boiling Top Range - Marine (Code 391182) puts four independent 4 kW cast-iron plates on one 800 mm module, giving a galley four separate stations for stocks, sauces, and sides running side by side.

Each plate is hermetically sealed to a single stainless steel top, closing off any path for spills to reach the wiring underneath. The control knobs carry IPX4 water protection against splashes and routine cleaning, and the plates sit on open base cupboards, bridging supports, or cantilever systems, so this range slots into most existing 900XP layouts without a redesign.

Main Features

• Four 4 kW cast-iron hot plates, hermetically sealed to the one-piece top;
• Total electrical load of 16 kW across the module;
• IPX4-rated control knob system;
• Built for open-base installation only, not compatible with refrigerated or freezer bases;
• Mounts on open base cupboards, bridging supports, or cantilever systems;
• One-piece pressed stainless steel worktop, 1.5 mm thick;
• Exterior panels in stainless steel with Scotch Brite finish;
• Right-angled side edges for flush, gap-free joints between modules;
• Supply voltage 400 V / 3 phase / 50-60 Hz;
• Net weight approximately 85 kg.

Electrolux Professional E9ECMH4Q05 900XP 4-Hot Plates Electric Boiling Top Range - Marine (Code 391182) Price

Maran Projekt GmbH lists the Electrolux Professional E9ECMH4Q05 900XP 4-Hot Plates Electric Boiling Top Range - Marine (Code 391182) price with the same care we put into every marine galley order, and we ship it to any port or shipyard you name.

Get in touch and describe what you're outfitting. We'll answer in English, German, or another language if that's easier, and we throw in the manual for this range at no cost, along with straightforward advice on fitting it into your galley's existing 900XP line.
