Electrolux Professional MA1FDAHOOO CUPBOARD BASE,H2,GN,2DR,1S,800X800X550H (Code 588227, Alias 9CHG588227)

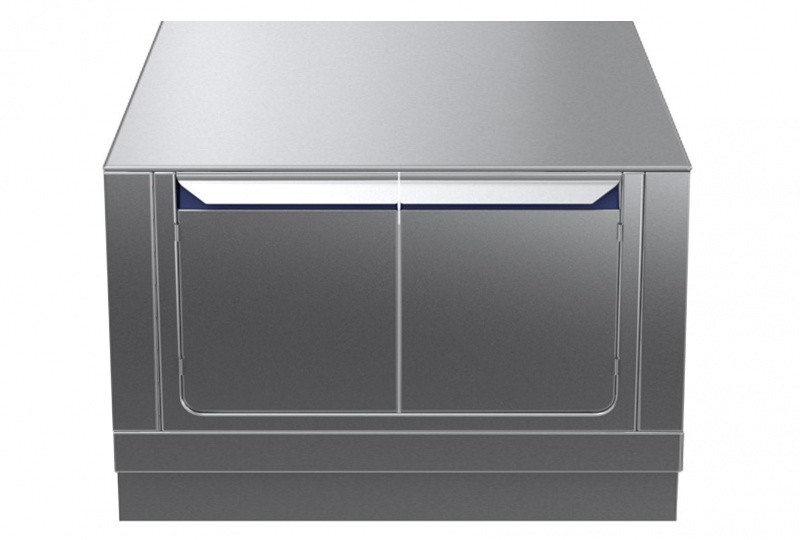

800 mm wide cupboard base with 2 doors with hygienic design and round edges. Unit constructed according to DIN 18860_2 with 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Cupboard storage space accepts GN 1/1 containers.
IPX5 water resistant certification.
Configuration: One-side operated freestanding base, hygienic class H2.800 mm wide cupboard base with 2 doors with hygienic design and round edges. Unit constructed according to DIN 18860_2 with 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Cupboard storage space accepts GN 1/1 containers.
IPX5 water resistant certification.
Configuration: One-side operated freestanding base, hygienic class H2.800 mm wide cupboard base with 2 doors with hygienic design and round edges. Unit constructed according to DIN 18860_2 with 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Cupboard storage space accepts GN 1/1 containers.
IPX5 water resistant certification.
Configuration: One-side operated freestanding base, hygienic class H2.800 mm wide cupboard base with 2 doors with hygienic design and round edges. Unit constructed according to DIN 18860_2 with 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Cupboard storage space accepts GN 1/1 containers.
IPX5 water resistant certification.
Configuration: One-side operated freestanding base, hygienic class H2.
Buy Electrolux Professional MA1FDAHOOO CUPBOARD BASE,H2,GN,2DR,1S,800X800X550H (Code 588227) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MA1FDAHOOO
- WxDxH mm: 800x800x550 mm
- Weight: 30 Kg
- Alias: 9CHG588227
- Factory Model: MA1FDAHOOO
- Customs_Class: 94032080
- Country of origin: Switzerland
- Net Width: 800
- Net Depth: 800
- Net Height: 550
- Data Sheet: thermaline 80 - 800 mm Cupboard base with 2 doors, GN conform, 1 Side (H2) - H=550
- Brochure: thermaline Book
- Range Overview: thermaline Modular 80
- CAD Drawings: 588227
- BIM/Revit: 588227
