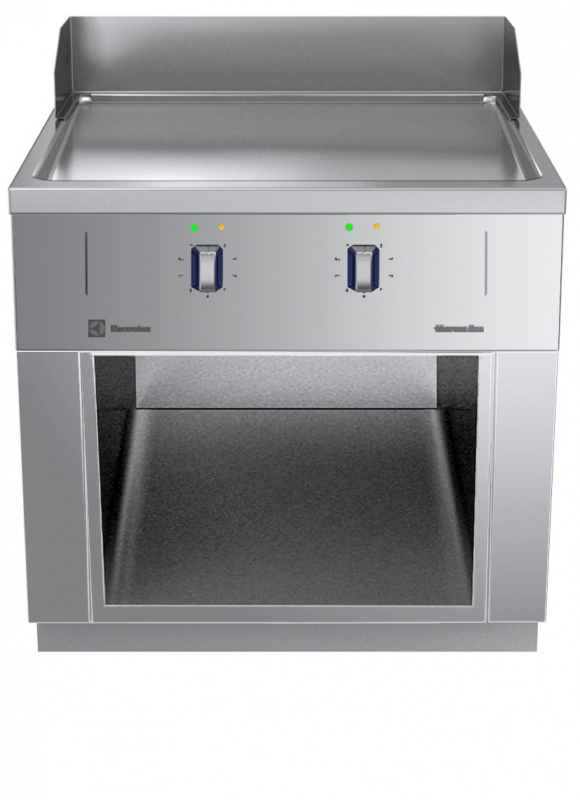

Electrolux Professional MBHBGBHDAO EL.FRYTOP,SMOOTH PL,1S,BSPL,800X850X700H (Code 588666, Alias 9CHG588666)
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Smooth chromium-plated mild steel cooking surface with non-stick finishing for optimal grilling. Stainless steel high splash guards on the rear and sides. Powerblock heating system for optimal temperature distribution. Large drain hole allows draining of cooking juices into a large collector. Overheat protection switches off the supply in case of overheating. Standby function saves energy and quickly recovers maximum power. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. IPX5 water resistant certification. Configuration: Freestanding, one side operated with backsplash.
Buy Electrolux Professional MBHBGBHDAO EL.FRYTOP,SMOOTH PL,1S,BSPL,800X850X700H (Code 588666) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MBHBGBHDAO
- WxDxH mm: 800x850x700 mm
- Weight: 145 Kg
- Alias: 9CHG588666
- Factory Model: MBHBGBHDAO
- Customs_Class: 8419500090
- Country of origin: Switzerland
- Net Width: 800
- Net Depth: 850
- Net Height: 700
- Electrical power: 15 Kw
- Voltage: 400 V
- Frequency: 50/60 Hz
- Phases: 3N
- Data Sheet: thermaline 85 - Full Module Freestanding Electric Fry Top, 1 Side with Backsplash
- Brochure: thermaline Modular 85
- Range Overview: thermaline Modular 85
- CAD Drawings: 588666
- Spare Parts Catalogue: 588666
Upon Request
Electrolux Professional MBHBGBHDAO (588666)
The universal modular system provides unlimited possibilities for completing the workspace. A modular fry top like Electrolux Professional MBHBGBHDAO (588666) is one of the most important elements of such staff.
This unit combines deep traditions and the latest technologies.
Main Features
- Contact frying 1-side electric top, with backsplash;
- The top panel made of AISI 304 (1.4301) stainless steel, 2 mm thick;
- Produced according to DIN 18860_2 standard;
- The THERMODUL connection system creates a seamless work surface, which eliminates the accumulation of dirt;
- IPX5 waterproof certification;
- The high-strength Powertop non-stick surface for optimal heat distribution;
- High splash guards of stainless steel located on the sides;
- The built-in thermostat controls heat distribution, and thermal fuses help to avoid overheating;
- Wide drain for grease drainage.
Electrolux Professional MBHBGBHDAO Price
You can get more useful information on the technical characteristics, and price of the Electrolux Professional MBHBGBHDAO (588666) module from the official distributor Maran Projekt GmbH.
The company has experience of more than 20 years and provides tech support in many languages.
