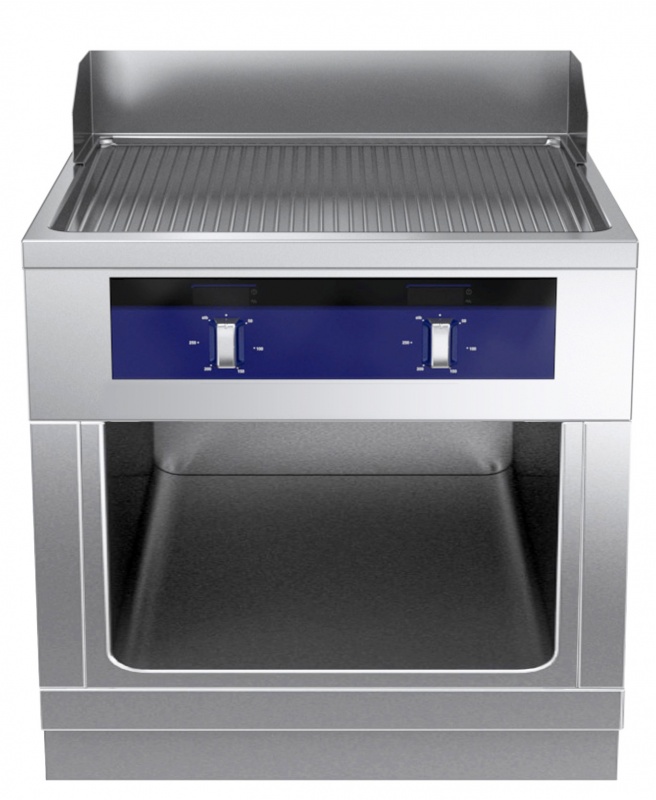

Electrolux Professional MCHDFBHDAO EL.FRYTOP,RIBBED PL,1S,BSPL,800X900X800 (Code 589563, Alias 9CHG589563)
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Chromium-plated mild steel cooking surface with non-stick finishing for optimal grilling. Stainless steel high splash guards on the rear and sides. Electrical control via thermocouples for precise temperature control and safety thermostat. Large drain hole allows draining of cooking juices into a large collector. Overheat protection switches off the supply in case of overheating. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. IPX5 water resistant certification. Configuration: Freestanding, One-side operated with backsplash.
Buy Electrolux Professional MCHDFBHDAO EL.FRYTOP,RIBBED PL,1S,BSPL,800X900X800 (Code 589563) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCHDFBHDAO
- WxDxH mm: 800x900x800 mm
- Weight: 150 Kg
- Alias: 9CHG589563
- Factory Model: MCHDFBHDAO
- Customs_Class: 8419500090
- Country of origin: Switzerland
- Net Width: 800
- Net Depth: 900
- Net Height: 800
- Electrical power: 15 Kw
- Voltage: 400 V
- Frequency: 50/60 Hz
- Phases: 3N
- Data Sheet: thermaline 90 - Full Module Freestanding Electric Fry Top, 1 Side with Backsplash, H=800
- Brochure: thermaline Book
- Range Overview: thermaline Modular 90
- CAD Drawings: 589563
- Spare Parts Catalogue: 589563
- BIM/Revit: 589563
Upon Request
Electrolux Professional MCHDFBHDAO (589563)
Proper kitchen equipment is an even more important component for a successful business. A fry top like Electrolux Professional MCHDFBHDAO (589563) is the main element of any construction.
The unit is made of high-quality stainless steel, which has the highest levels of hygiene, environmental friendliness, durability, longevity, as well as excellent aesthetic characteristics.
Main Features
- 1-side freestanding electric top, with backsplash;
- Ribbed chrome surface;
- 2 independent heating zones with individual power regulators;
- Made of AISI 304 (1.4301) stainless steel;
- Wide drain hole for drainage of fat into a large grease container;
- The THERMODUL connection system provides a seamless work surface;
- A display made of tempered glass, resistant to heat and chemicals.
- The 20 mm protruding edge of the worktop and the 70 mm deep skirting board comply with DIN 18860_2 and ensure ease of cleaning;
- Pilot burner LED;
- Sealing index IPX5.
Electrolux Professional MCHDFBHDAO Price
You can order Electrolux Professional MCHDFBHDAO (589563) from the official dealer Maran Projekt GmbH at a favorable price.
The company supplies only high-quality equipment for restaurants and other establishments from the world's leading manufacturer.
