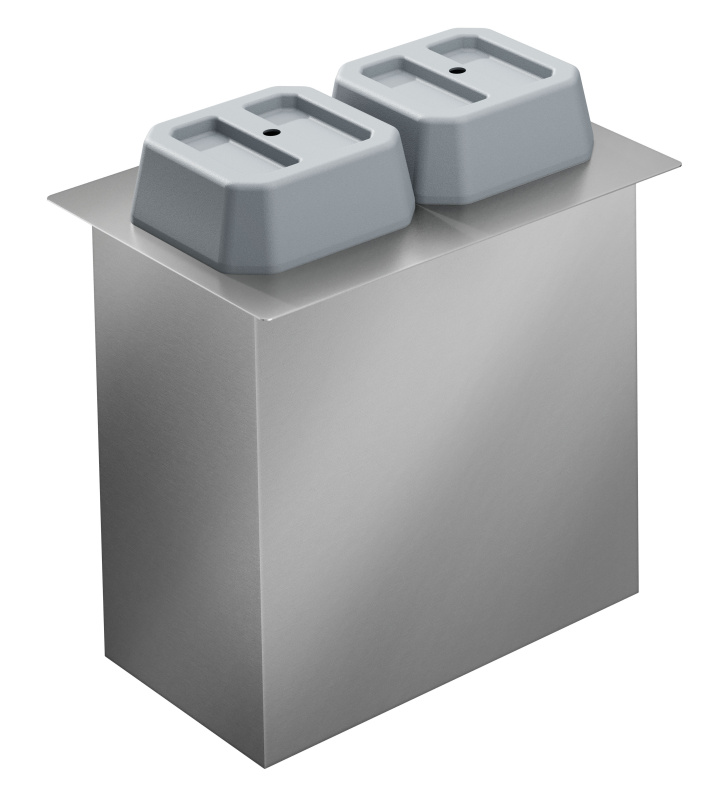

Electrolux Professional D33H Drop-In Heated Plate Dispenser, 2 cylinders - Ø180-240 mm (Code 341165)

Electrolux Professional D33H Drop-in Heated Plate Dispenser, 2 Cylinders (Code 341165)

A single cylinder covers a small line, but a busy pass running two courses side by side needs twice the ready supply. The Electrolux Professional D33H Drop-in Heated Plate Dispenser, 2 Cylinders (Code 341165) pairs two heated cylinders in one flush-mounted unit, each taking plates from 180 mm to 240 mm across and holding up to 50 plates, for a combined 100 plates warm and ready at the pass.

Electrolux Professional loads each cylinder with its own guiding profiles for different plate and bowl shapes, so one side can run starter plates while the other holds mains without either stack interfering with the other. A shared digital thermostat keeps both cylinders to within 0.1°C and raises the same HACCP-compliant alarm on any drift. Running two heating circuits instead of one puts power draw at 1.62 kW, roughly double the single-cylinder unit, and net weight climbs to 32 kg, still a two-person lift into a flush cutout rather than a job for machinery.

Specifications

• Drop-in heated plate dispenser, double cylinder, for plates 180-240 mm in diameter;
• Two independent cylinders, each holding up to 50 plates (with covers), 100 plates total;
• Heated cylinders keep a full stack of plates at serving temperature;
• Guiding profiles inside each cartridge accommodate different plate and bowl shapes;
• Digital control with temperature display, precise adjustment to 0.1°C;
• HACCP-compliant digital controls with visible alarms;
• CB and CE certified by a third-party notified body;
• Flush installation for a level, easy-to-clean counter;
• IPx4 water protection;
• Supply: 220-240V/1N/50-60Hz, max power 1.62 kW;
• External dimensions: 620 mm (W) x 450 mm (D) x 860 mm (H), net weight 32 kg.

Electrolux Professional D33H Drop-in Heated Plate Dispenser, 2 Cylinders (Code 341165) Price

Get in touch with Maran Projekt GmbH for the Electrolux Professional D33H Drop-in Heated Plate Dispenser, 2 Cylinders (Code 341165) price, and we'll route delivery to your restaurant or banquet kitchen wherever that build is happening.

Our advisers write and speak English and German daily, adding other languages whenever an international project needs them. A history of more than 25 years with Electrolux Professional equipment and over 1,500 clients across six continents means we can help plan the cutout and power supply for a two-cylinder dispenser before you order. Every unit comes with a free manual, and Electrolux Professional's global network of more than 200 service centres backs it up once it's running.
