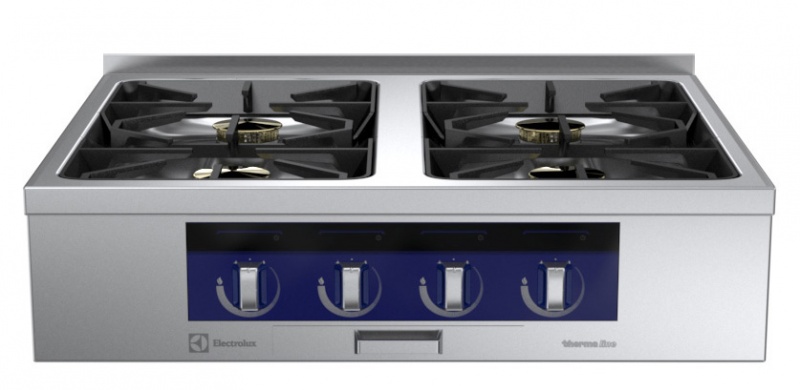

Electrolux Professional MCGHABJOPI GAS TOP,4 BURN,ECO,1S,BSPL,1000X900X250H (Code 589083, Alias 9CHG589083)
Unit constructed according to DIN 18860_2 with 20 mm drop nose top. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. 4 gas burners with optimized combustion, flame failure device, thermocouple safety hand valve and protected pilot flame. Triple ring 'flower' flame burners with anti-clogging design. Manual gas valves allow precise flame intensity control. Large pan support in cast iron with long center fins for various pan sizes. ECOFLAM pan detection system to save energy and to reduce unnecessary heat radiation in the kitchen. Deep flat spillage tray with rounded corners and drain hole. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. IPX4 water resistant certification. Configuration: One-side operated top with backsplash. The base needs to be supplied by the factory. Please include appropriate base.
Buy Electrolux Professional MCGHABJOPI GAS TOP,4 BURN,ECO,1S,BSPL,1000X900X250H (Code 589083) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MCGHABJOPI
- WxDxH mm: 1000x900x250 mm
- Weight: 82 Kg
- Alias: 9CHG589083
- Factory Model: MCGHABJOPI
- Customs_Class: 8419500090
- Country of origin: Switzerland
- Net Width: 1000
- Net Depth: 900
- Net Height: 250
- Gas power: 40 Kw
- Data Sheet: thermaline 90 - 4-Burner Gas Top with Ecoflam, 1 Side, Backsplash
- Brochure: thermaline Book
- Range Overview: thermaline Modular 90
- CAD Drawings: 589083
- Spare Parts Catalogue: 589083
- BIM/Revit: 589083
Upon Request
Electrolux Professional MCGHABJOPI (589083)
Therma line equipment of food enterprises is the most important component of a professional kitchen, without which it is impossible to prepare and serve hot dishes. The vital element of its construction is a gas top like Electrolux Professional MCGHABJOPI (589083).
The main advantage of this manufacturer is the high technical level, which determines the quality of products.
Main Features
- Gas top with 4 burners, and control panel on 1 side with backsplash;
- Produced according to DIN 18860_2 with a 20 mm offset nose;
- Convenient front access to all key components;
- Sealing index - IPX5;
- Metal regulators with silicone inserts;
- The THERMODUL connection system for a seamless work surface;
- Each burner is equipped with a thermocouple and a protected pilot burner;
- The top panel is made from steel AISI 304 (1.4301) 2 mm thick.
- The Ecoflam device allows you to reduce gas consumption and heat emission.
Electrolux Professional MCGHABJOPI Price
You can purchase Electrolux Professional MCGHABJOPI (589083) at the best price in the online store of the official dealer MARAN Projekt GmbH.
The range of equipment offered by the company is constantly expanding. The main concept of the company is to provide high-quality equipment based on the latest research and development.
