Code: 589016

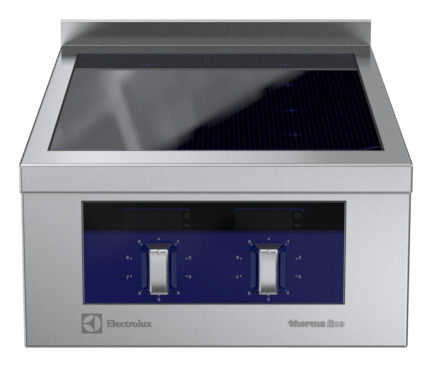

Electrolux Professional MCCBABEOAO INFRARED TOP,2 ZONES,1-S,BS,500X900X250H (Code 589016, Alias 9CHG589016)

Product

Unit constructed according to DIN 18860_2 with 20 mm drop nose top. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Glass ceramic cooking surface with 9 power levels and 2 independently controlled infrared heating zones. Overheat protection switches off the supply in case of overheating. Standby function saves energy and quickly recovers maximum power. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. Residual hot warning system enables safe operations. IPX5 water resistance certification. Configuration: One-side operated top with backsplash. The base needs to be supplied by the factory. Please include appropriate base.

Buy Electrolux Professional MCCBABEOAO INFRARED TOP,2 ZONES,1-S,BS,500X900X250H (Code 589016) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Brand: Electrolux Professional
Model: MCCBABEOAO
WxDxH mm: 500x900x250 mm
Weight: 24 Kg
Alias: 9CHG589016
Factory Model: MCCBABEOAO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 500
Net Depth: 900
Net Height: 250
Electrical power: 8 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Data Sheet: thermaline 90 - 2 Zone Infrared Top, 1 Side with Backsplash
Brochure: thermaline M2M - Made to Measure
Range Overview: thermaline Modular 90
CAD Drawings: 589016
Spare Parts Catalogue: 589016
BIM/Revit: 589016

Shipping status

Upon Request

INFRARED TOP,2 ZONES,1-S,BS,500X900X250H (Code 589016)

Electrolux Professional MCCBABEOAO (589016)

Even small public establishments like cafes or bars still need quality kitchen equipment.

Electrolux Professional MCCBABEOAO (589016) is an electric stove that, despite its size, has quite a wide functionality and can cope with any amount of work.

The main functions are:

Weight: 24 kg
Net Width: 500
Net depth: 900
Net height: 250
Electric power: 8 kW
Voltage: 400V
Frequency: 50/60 Hz
Large, visible, heat, and chemical-resistant tempered glass digital display shows temperature or power settings. The display also shows the on/off status of the appliance and the on/off status of the heating elements
Standby function to save energy and quickly restore maximum power
9 power levels
Residual heat warning system for safe operation
Glass-ceramic hob with 2 independently controllable infrared heating zones
Pans can be easily moved from one place to another without lifting
IPX5 waterproof certification
All main components are easily accessible from the front
The THERMODUL connecting system creates a seamless work surface when the blocks are connected, which prevents the penetration of soil vital components and easy removal of blocks in case of replacement or maintenance
