Code: 589019

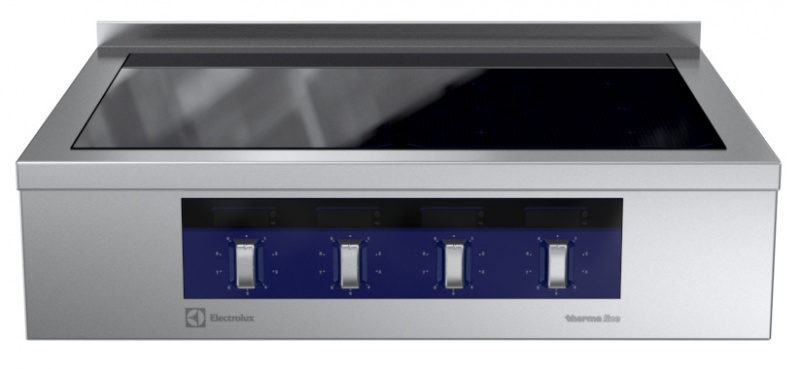

Electrolux Professional MCCDABJOAO INFRARED TOP,4 ZONES,1S,BS,1000X900X250H (Code 589019, Alias 9CHG589019)

Product

Unit constructed according to DIN 18860_2 with 20 mm drop nose top. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Glass ceramic cooking surface with 9 power levels and 4 independently controlled infrared heating zones. Overheat protection switches off the supply in case of overheating. Standby function saves energy and quickly recovers maximum power. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. Residual hot warning system enables safe operations. IPX5 water resistance certification. Configuration: One-side operated top with backsplash. The base needs to be supplied by the factory. Please include appropriate base.

Buy Electrolux Professional MCCDABJOAO INFRARED TOP,4 ZONES,1S,BS,1000X900X250H (Code 589019) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Brand: Electrolux Professional
Model: MCCDABJOAO
WxDxH mm: 1000x900x250 mm
Weight: 50 Kg
Alias: 9CHG589019
Factory Model: MCCDABJOAO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1000
Net Depth: 900
Net Height: 250
Electrical power: 16 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Data Sheet: thermaline 90 - 4 Zone Infrared Top, 1 Side with Backsplash
Brochure: thermaline M2M - Made to Measure
Range Overview: thermaline Modular 90
CAD Drawings: 589019
Spare Parts Catalogue: 589019
BIM/Revit: 589019

Shipping status

Upon Request

INFRARED TOP,4 ZONES,1S,BS,1000X900X250H (Code 589019)

Electrolux Professional MCCDABJOAO (589019)

The best solution for your professional kitchen is the Electrolux Professional MCCDABJOAO (589019).

It's a solid surface electric stove that not only offers quality cooking capabilities but also safety and economic features.

Main features:

Weight: 50 kg
Net Width: 1000
Net depth: 900
Net Height: 250
Electric power: 16 kW
Voltage: 400 V
Frequency: 50/60 Hz
Metal handles with integrated hygienic silicone "soft" handle for easy operation and cleaning
Large visible tempered glass digital display, heat and chemical resistant, showing temperature or power settings. The display also shows the on/off status of the appliance and the status of the heating elements
Standby function to save energy and quickly restore maximum power
9 power levels
Residual heat warning system for safe operation
Glass-ceramic hob with 4 independently controllable infrared heating zones
IPX5 water protection certificate
All main components are easily accessible from the front
THERMODUL connecting system creates a seamless work surface when the units are connected, which prevents soil from penetrating the vital components and makes it easy to remove the units in case of replacement or maintenance
