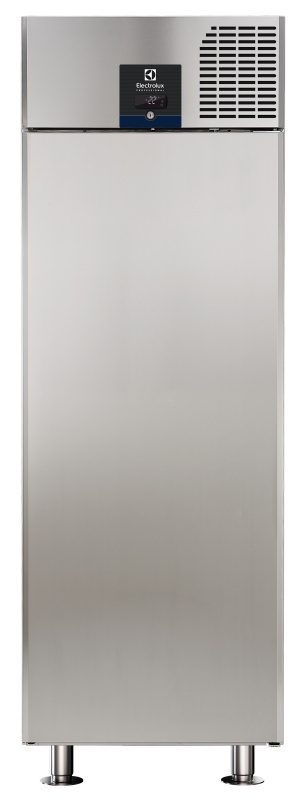

Electrolux Professional REX71FF60MH 1-DOOR FREEZER 670L -22-15°C, DIGITAL, A304, R290 - 60HZ MARINE (Code 725234)
1-door Freezer 670lt, -22-15°C, digital, AISI 304, R290, 60Hz (Marine). Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K). Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space. 60 mm-thick insulation covering the evaporator can be easily removed with a single operation. Anti-corrosion bottom avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors. Doors are self-closing and can be fully opened up to 180°. Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle. Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.
Buy Electrolux Professional REX71FF60MH ecostore 1 Door Digital Freezer, 670lt (-22/-15), AISI 304 Marine (R290) (Code 725234) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: REX71FF60MH
- Country of origin: Italy
- Net Width: 710 mm
- Net Depth: 835 mm
- Net Height: 2050 mm
- Electrical power: 0.58 kW
- Voltage: 208-230 V/1 ph/60 Hz
- Refrigerant type: R290
- Refrigerant weight: 100 g
- Data Sheet: 1 Door Digital Freezer, 670lt (-22/-15), AISI 304 Marine (R290)
- Leaflet: ecostore Refrigerated Cabinets
- Brochure: ecostore Refrigerated Cabinets
- CAD Drawings: 725234
- Spare Parts Catalogue: 725234
- Energy Label: 725234
- BIM/Revit: 725234
Orderable
Electrolux Professional REX71FF60MH 1 Door Digital Freezer, 670lt, AISI 304 Marine, 60Hz (Code 725234)
Not every galley or export kitchen runs on the 50Hz supply most European equipment assumes, vessels flagged out of the Americas and several other regions run on 60Hz instead, and plugging in the wrong unit means a compressor working outside its rated cycle. The Electrolux Professional REX71FF60MH 1 Door Digital Freezer, 670lt, AISI 304 Marine, 60Hz (Code 725234) is built specifically for that supply, holding -22°C to -15°C on 220-230V/1ph/60Hz, with 503 litres of net volume and three GN 2/1 grids included.
Electrolux Professional carries the same marine-grade build across from the 50Hz version: stainless runners rated for shipboard use, a lockable self-closing door that swings open to 180°, and a hidden evaporator behind a removable panel to keep the coil clear of corrosion. Running at 60Hz shifts the electrical draw to 0.58 kW and the refrigerant charge to 100 g of R290, both figures the installer needs before wiring the supply. A remote alarm kit is available as an option for engine rooms or unattended galleys where nobody's within earshot of the cabinet's own HACCP alarm, and the usual 75 mm cyclopentane insulation and triple-chamber magnetic gasket keep the box running efficiently regardless of the local grid.
Key Features
- 1-door freezer, 670 lt gross capacity (503 lt net), operating range -22°C to -15°C;
- Full AISI 304 stainless steel internal and external structure;
- Right-hinged full door, self-closing, opens up to 180°;
- 44 loading positions on 30 mm pitch, includes 3 GN 2/1 grids on marine-spec stainless runners;
- 60Hz electrical configuration for markets and vessels running that supply;
- Back-to-front forced air flow for even temperature distribution and fast recovery;
- Hidden evaporator behind a removable insulation panel, for higher net capacity and less corrosion;
- 75 mm cyclopentane cabinet insulation (0.020 W/m·K thermal conductivity);
- Digital control with cabinet temperature display, automatic defrost, HACCP-compliant visible alarms;
- Door microswitch stops the fan whenever the door is opened, to save energy;
- Removable triple-chamber magnetic gasket for a tighter seal and easier cleaning;
- Lockable door with rounded internal corners for easy cleaning;
- Integrated RS485 port for remote monitoring and HACCP data logging;
- R290 refrigerant, CFC and HCFC free;

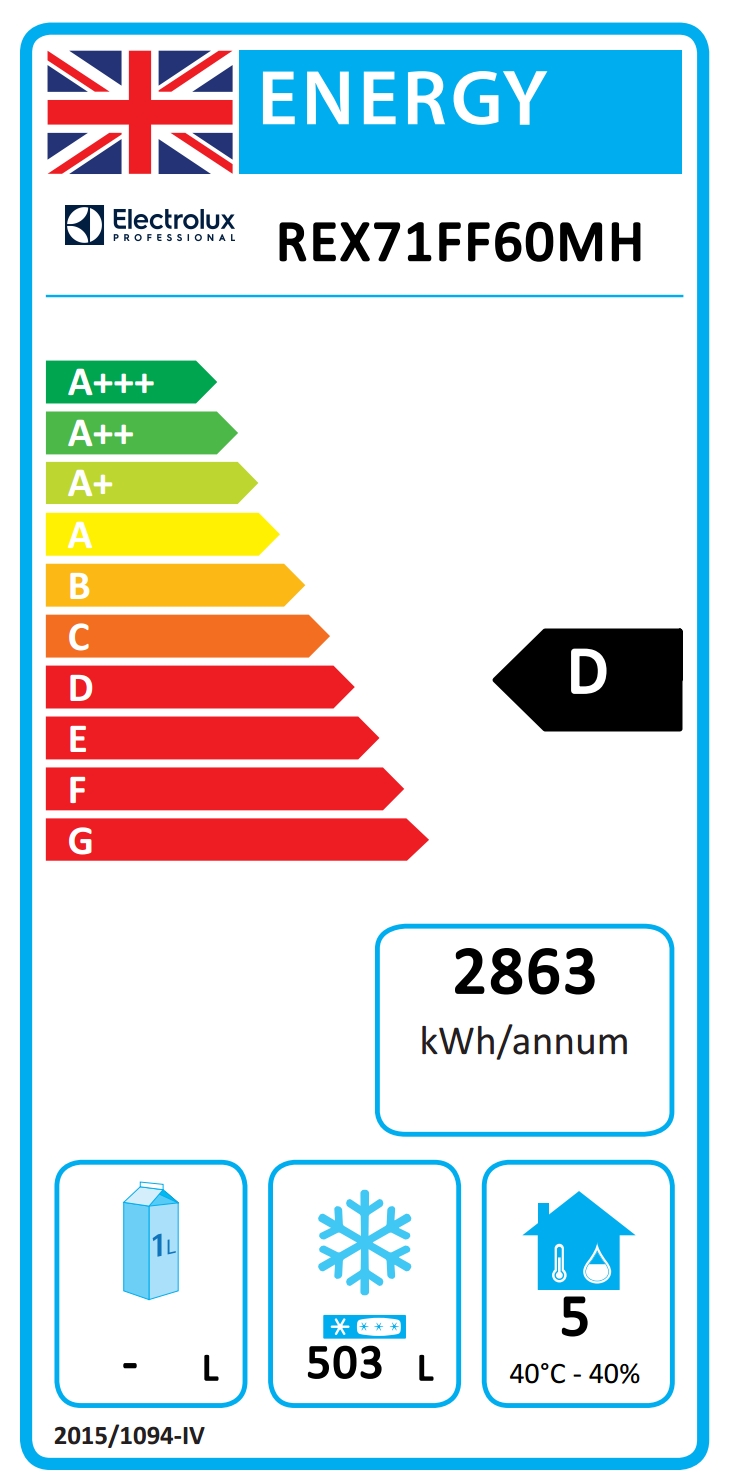

- Supply: 220-230V/1ph/60Hz, max power 0.58 kW; energy class D, 2863 kWh/year;
- External dimensions: 710 mm (W) x 835 mm (D) x 2050 mm (H).
Electrolux Professional REX71FF60MH 1 Door Digital Freezer, 670lt, AISI 304 Marine, 60Hz (Code 725234) Price
Message Maran Projekt GmbH for the Electrolux Professional REX71FF60MH 1 Door Digital Freezer, 670lt, AISI 304 Marine, 60Hz (Code 725234) price, and we'll handle export and delivery to whichever port or shipyard the vessel is fitting out at.
Twenty-five years as an official Electrolux Professional dealer has put us in touch with over 1,500 clients spread across six continents, marine contractors well represented among them, which makes matching electrical specification to a vessel's local supply a routine part of the quote. We correspond daily in English and German and bring in additional languages as international orders need them. A free manual is available on request, and Electrolux Professional's service network of more than 200 centres worldwide backs the equipment wherever it ends up working.
