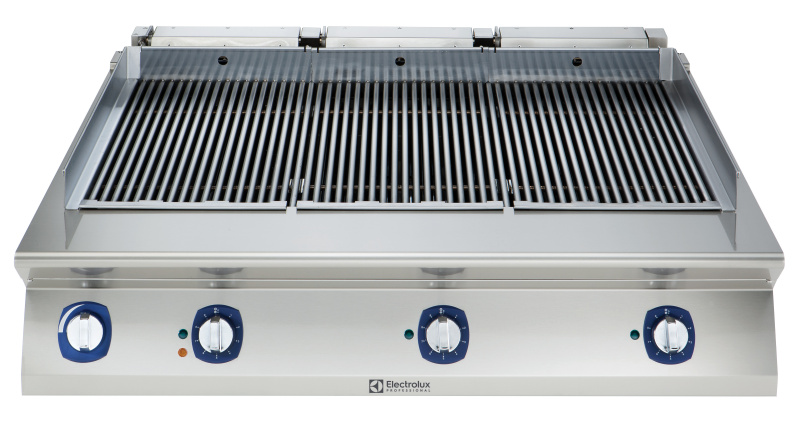

Electrolux Professional E9JJCHAOMIG Modular Cooking Range Line 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363)
Large module electric Grill Top HP (high performance). Heating via incoloy armoured heating elements positioned under removable cooking grid, integrated water tap, fixed well with drain, heat boost deflectros, WRAS - marine. Each bank of elements has an independent power regulation through a control knob. Water must be added to well before operation.
Buy Electrolux Professional E9JJCHAOMIG Modular Cooking Range Line 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: E9JJCHAOMIG
- Weight: 143 kg
- Country of origin: Italy
- Net Width: 1200 mm
- Net Depth: 930 mm
- Net Height: 250 mm
- Electrical power: 17.4 kW
- Voltage: 400 V/3 ph/50/60 Hz
- Data Sheet: 391363
- Brochure: BR-9JE00117
- Spare Parts Catalogue: 59785UW00
- CAD Drawings: 391363
- BIM/Revit: 391363
Orderable
Electrolux Professional E9JJCHAOMIG 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363)
Marine galleys can't install just any grill and hope the plumbing inspector signs off. The Electrolux Professional E9JJCHAOMIG 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363) carries full WRAS approval for its integrated water system, so the fixed well and its filling tap meet the water regulations that matter on a vessel.
Underneath, incoloy-armoured heating elements sit beneath removable AISI 441 stainless steel grids, and each bank runs off its own control knob, so a cook can hold one zone hot for searing while another idles for holding. When it's time to clean, the elements tilt 90 degrees out of the way and the grids lift straight off, cutting a job that used to eat into the break between services.
Key features
- Removable 2 mm thick U-shaped grids in AISI 441 stainless steel;
- Incoloy-armoured heating elements beneath the cooking grid;
- Independent power regulation per bank, via control knob;
- Heating elements tilt 90° for cleaning access;
- LED indicator warns when the well runs low on water;
- Fixed well with drain, protected by an overflow and filter;
- Integrated water filling tap with knob control;
- Removable stainless steel deflectors to recover heat and cut cooking time;
- Removable stainless steel splash guards on both sides;
- WRAS-compliant water system;
- AISI 304 stainless steel worktop, 2 mm thick, 930 mm deep;
- Suitable for ambient, refrigerated, or freezer base installation;
- Supply voltage 400 V / 3 phase / 50-60 Hz, max electrical power 17.4 kW;
- Net weight approximately 143 kg.
Electrolux Professional E9JJCHAOMIG 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363) Price
A grill this size, built to marine compliance standards, isn't something you buy on a whim, and Maran Projekt GmbH prices it accordingly. Ask our consultants for the Electrolux Professional E9JJCHAOMIG 900XP Electric Grill Top HP 1200mm (Marine) (Code 391363) price and we'll arrange shipping to any city, on any coast, worldwide.
We work with vessels and shore kitchens alike, and our consultants answer questions in English, German, or whichever language you're most comfortable with. Ask for the manual on this grill, or on any other Electrolux Professional model, and we'll send it over free of charge.
