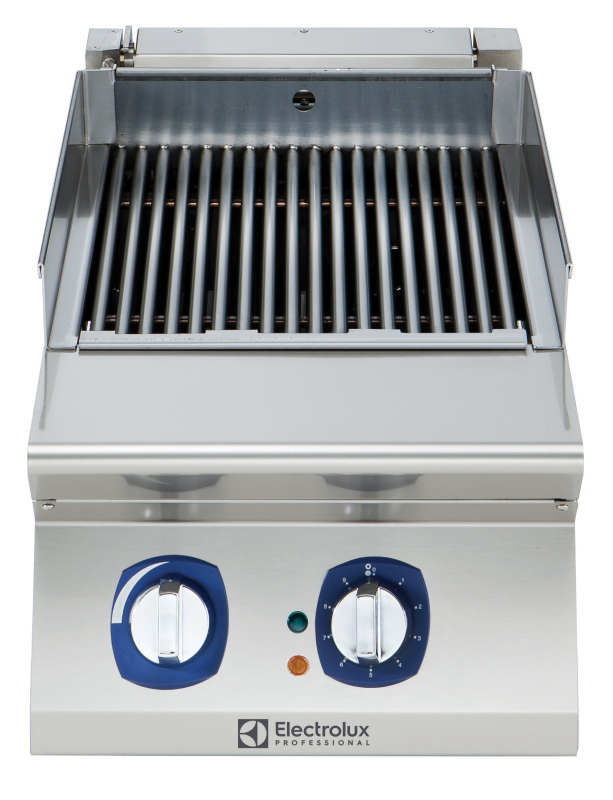

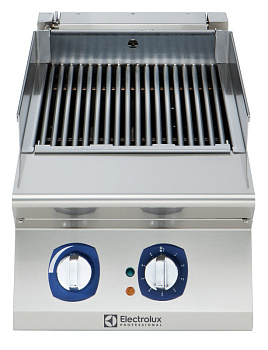

Electrolux Professional E9JJCHAOMCG Modular Cooking Range Line 900XP Electric Grill Top HP 400mm (Marine) (Code 391365)
Half module electric Grill Top HP (high performance). Heating via incoloy armoured heating elements positioned under removable cooking grid, integrated water tap, fixed well with drain, heat boost deflectros, WRAS - marine. Each bank of elements has an independent power regulation through a control knob. Water must be added to well before operation.
Buy Electrolux Professional E9JJCHAOMCG Modular Cooking Range Line 900XP Electric Grill Top HP 400mm (Marine) (Code 391365) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: E9JJCHAOMCG
- Weight: 52 kg
- Country of origin: Italy
- Net Width: 400 mm
- Net Depth: 930 mm
- Net Height: 250 mm
- Electrical power: 5.8 kW
- Voltage: 400 V/3 ph/50/60 Hz
- Data Sheet: 391365
- Brochure: BR-9JE00117
- Spare Parts Catalogue: 59785UW00
- CAD Drawings: 391365
- BIM/Revit: 391365
Orderable
Electrolux Professional E9JJCHAOMCG 900XP Electric Grill Top HP 400mm (Marine) (Code 391365)
Sometimes a full 1200mm grill won't fit a tight galley corner, and that's what the half-module option is for. The Electrolux Professional E9JJCHAOMCG 900XP Electric Grill Top HP 400mm (Marine) (Code 391365) brings the same WRAS-compliant, high-performance grilling technology as its larger siblings into a compact 400mm footprint that slots between other 900XP modules on the line.
An incoloy-armoured heating element sits beneath a removable AISI 441 stainless steel grid, ready to sear at full output without waiting to warm up the way older grill designs do. Cleaning takes minutes rather than a full break: the element tilts clear on a hinge, and the grid lifts straight off the top.
Specifications
- Compact 400mm module width, part of the 900XP Electric Grill Top HP range;
- Removable 2 mm thick U-shaped grid in AISI 441 stainless steel;
- Incoloy-armoured heating element beneath the cooking grid;
- Independent power regulation via control knob;
- Heating element tilts 90° for cleaning access;
- LED indicator warns when the well runs low on water;
- Fixed well with drain, protected by an overflow and filter;
- Integrated water filling tap with knob control;
- Removable stainless steel deflectors to recover heat and cut cooking time;
- Removable stainless steel splash guards on both sides;
- WRAS-compliant water system;
- AISI 304 stainless steel worktop, 2 mm thick, 930 mm deep;
- Suitable for ambient, refrigerated, or freezer base installation;
- Supply voltage 400 V / 3 phase / 50-60 Hz, max electrical power 5.8 kW;
- Net weight approximately 52 kg.
Electrolux Professional E9JJCHAOMCG 900XP Electric Grill Top HP 400mm (Marine) (Code 391365) Price
Sizing a galley line down to the last module saves both money and deck space, and Maran Projekt GmbH can help you get that balance right. Ask about the Electrolux Professional E9JJCHAOMCG 900XP Electric Grill Top HP 400mm (Marine) (Code 391365) price alongside the rest of your 900XP layout, and we'll put together a quote that covers the whole line.
Our consultants have spent more than 25 years fitting out galleys and commercial kitchens with Electrolux Professional equipment, and we're glad to talk through sizing questions in English, German, or another language. Manuals for this grill, or anything else in the catalog, come free on request.
