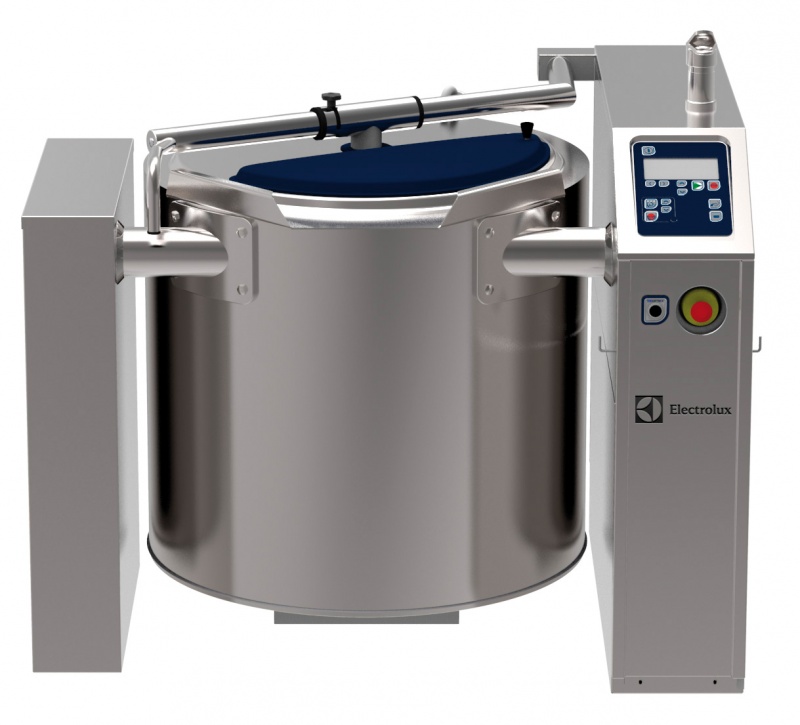

Electrolux Professional SM6V200 EL.PAN+STIRRER 200 LT, H=600, VARIOMIX (Code 232226, Alias 9AIX232226)
Electrolux Professional SM6V200 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. Bottom agitator mixes at speeds from 25 to 100 rpm. Whipping cycle up to 200 rpm. Continuous rotating or 2 rotating directions with the possibility to modify times. Step program facilitates removal of food. High thermal input and fast heat up. Electronic SMART control with possibility to store 50 programs; error message facility; display with: cooking time and temperature, water filling. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed thermal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6V200 EL.PAN+STIRRER 200 LT, H=600, VARIOMIX (Code 232226) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6V200 Specifications
- Brand: Electrolux Professional
- Model: SM6V200
- WxDxH mm: 1345x1070x1050 mm
- Weight: 365 Kg
- Alias: 9AIX232226
- Factory Model: SM6V200
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 340.00 kg
- Net Width: 1345
- Net Depth: 1070
- Net Height: 1050
- Europe Weight: 375.00 Kg
- Europe Width: 1,550 mm
- Europe Height: 1,350 mm
- Overseas Weight: 395.00 Kg
- Overseas Depth: 1,370 mm
- Overseas_Height: 1,350 mm
- Electrical power: 40 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6V200 Documents
- Data Sheet: Variomix Electric Boiling Pan with Stirrer 200lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232226
- CAD Drawings: 232226
- BIM/Revit: 232226
Electrolux Professional SM6V200 Shipping status
Upon Request
Electrolux Professional SM6V200 (232226)
Success is guaranteed to your professional kitchen space with the assortment of Electrolux Professional and an electric boiling pan with a stirrer Electrolux Professional SM6V200 (232226).
A 200l smart boiling pan will enhance your professional performance with fast operation and easy-to-handle features.
Main Features
- 304 AISI stainless steel construction;
- 316 AISI stainless steel rounded-edges pan;
- Thermal insulation for speedy heating inside and cool surfaces outside;
- Integral heating system (120° C);
- A safety thermostat to prevent low water level;
- Valve to level the steam pressure;
- Motorised tilting up to 90° C with 600 height;
- The water-filling process to be programmed;
- Whipping cycle up to 200rpm;
- Continuous and 2-direction rotating modes;
- Smart control and a digital display to set and monitor cooking time, temperature, water filling, and select between 50 programmes.
Electrolux Professional SM6V200 Price
Maran Projekt GmbH will bring you success with the prominent Electrolux Professional appliances and propose you an electric boiling pan with a stirrer Electrolux Professional SM6V200 (232226) at an advanceable price.
Proficient support specialists are reachable round the day to assist you in English or German with the top beneficial choice.
