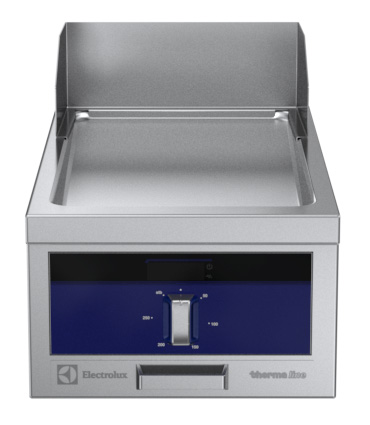

Electrolux Professional MAHMABDOAO EL.FRYTOP,SMOOTH PL,1S,BSPL,400X800X250H (Code 588057, Alias 9CHG588057)
Unit constructed according to DIN 18860_2 with 20 mm drop nose top. Internal frame for heavy duty sturdiness in 2 mm and 3 mm in 1.4301 (AISI 304). 2 mm top in 1.4301 (AISI 304). Flat surface construction, easily cleanable. THERMODUL connection system enables seamless worktop when units are connected and avoids soil penetrating. Chromium-plated mild steel cooking surface with non-stick finishing for optimal grilling. Stainless steel high splash guards on the rear and sides. Powerblock heating system for optimal temperature distribution. Large drain hole allows draining of cooking juices into a large collector. Overheat protection switches off the supply in case of overheating. Standby function saves energy and quickly recovers maximum power. Metal knobs with embedded hygienic silicon 'soft' grip enable easier handling and cleaning. IPX5 water resistant certification. Configuration: One-side operated top with backsplash. The base needs to be supplied by the factory. Please include appropriate base.
Buy Electrolux Professional MAHMABDOAO EL.FRYTOP,SMOOTH PL,1S,BSPL,400X800X250H (Code 588057) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: MAHMABDOAO
- WxDxH mm: 400x800x250 mm
- Weight: 69 Kg
- Alias: 9CHG588057
- Factory Model: MAHMABDOAO
- Customs_Class: 8419500090
- Country of origin: Switzerland
- Net Width: 400
- Net Depth: 800
- Net Height: 250
- Electrical power: 5 Kw
- Voltage: 400 V
- Frequency: 50/60 Hz
- Phases: 3N
- Data Sheet: thermaline 80 - Half Module Electric Fry Top, 1 Side with Backsplash
- Range Overview: thermaline Modular 80
- Brochure: thermaline Modular 80&90
- CAD Drawings: 588057
- Spare Parts Catalogue: 588057
- BIM/Revit: 588057
Upon Request
Electrolux Professional MAHMABDOAO (588057)
The Electrolux Professional MAHMABDOAO (588057) frying pan is designed for cooking food by heat treatment in different modes of operation: frying, stewing, boiling, stewing, pressure cooking, and steaming in canteens, restaurants, large production shops.
This versatile equipment will greatly simplify the work in the kitchen, and make the taste of each dish refined and unforgettable.
Main features
- Temperature range from 80°C to 280°C
- Working surface dimensions 300x615 mm
- Working surface structure smooth, chrome-plated steel
- Voltage 400 V
- Power 5 kW
- Dimensions, mm 400x800x250
- Weight 69 kg
- Wide overflow opening for grease drainage to large grease container below worktop.
- Safety thermostat: a temperature probe switches the appliance off in case of danger of overheating
- High, stainless steel splash guards are located on the sides and rear of the unit
- Each heating zone has an individual power regulator
- Sealed to IPX5
- Easy access to all key components from the front
- THERMODUL connection system
