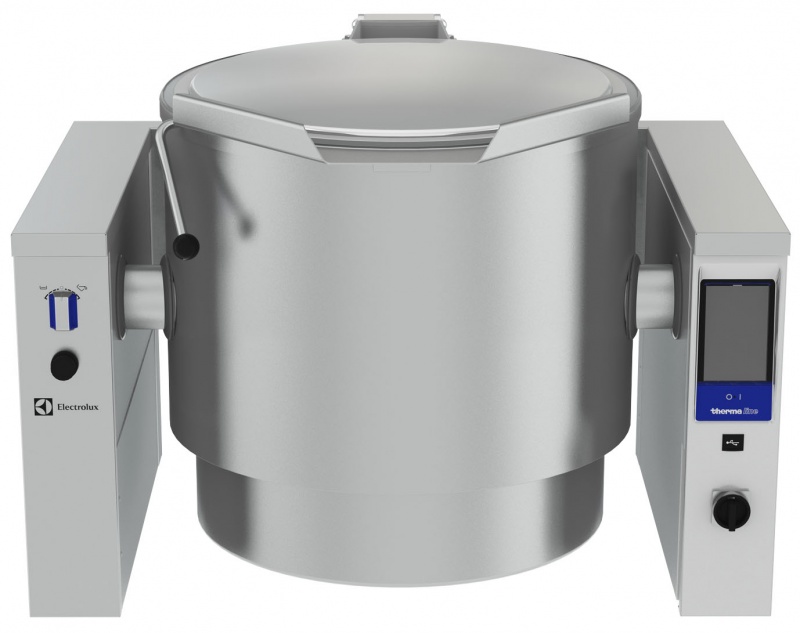

Electrolux Professional PBOT20RDEO EL.BOILING PAN/STIR,TILT,200L(H)FS,D1000 (Code 586031, Alias 9CHG586031)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT20RDEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Stirring rotation speed 21rpm. Stirrer drive shaft included, stirrer blades to be ordered separately. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 200mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT20RDEO EL.BOILING PAN/STIR,TILT,200L(H)FS,D1000 (Code 586031) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT20RDEO Specifications

Brand: Electrolux Professional
Model: PBOT20RDEO
WxDxH mm: 1400x1000x700 mm
Weight: 400 Kg
Alias: 9CHG586031
Factory Model: PBOT20RDEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1400
Net Depth: 1000
Net Height: 700
Electrical power: 30 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT20RDEO Documents

Data Sheet: Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
Range Overview: ProThermetic Boiling Pans Range Overview
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586031
Spare Parts Catalogue: 586031
BIM/Revit: 586031

Shipping status

Electrolux Professional PBOT20RDEO Shipping status

Upon Request

Electrolux Professional PBOT20RDEO (586031)

Improve matters at your professional kitchen area with Electrolux Professional and a tilting electric boiling pan with a stirrer Electrolux Professional PBOT20RDEO (586031).

Enhanced comfort is granted with an ergonomic construction, high-tech features, and simplified operating and maintenance.

Main Features

Construction in stainless steel;
Deep-drawn vessel with rounded edges;
Motorized tilting up to 90°C with changeable speed;
Uniform heating system via saturated steam(up to 125°C in the jacket);
21rpm rotating speed stirrer;
Stirrer drive shaft included, ordered blades;
A safety valve for steam overpressure monitoring;
Safety thermostat for low water level monitoring;
TOUCH control panel;
SOFT function;
A predefined cooking process with a built-in temperature sensor;
Single or multiphase cooking with a variety of temperature modes and recipes to choose from;
Standing against the wall or free-standing.

Electrolux Professional PBOT20RDEO Price

Maran Projekt GmbH will build up your way to success with Electrolux Professional equipment and propose a tilting electric boiling pan Electrolux Professional PBOT20RDEO (586031) at a transparent price.

Responsive experts are accessible 24/7 with an English or German-help on relevant issues.
