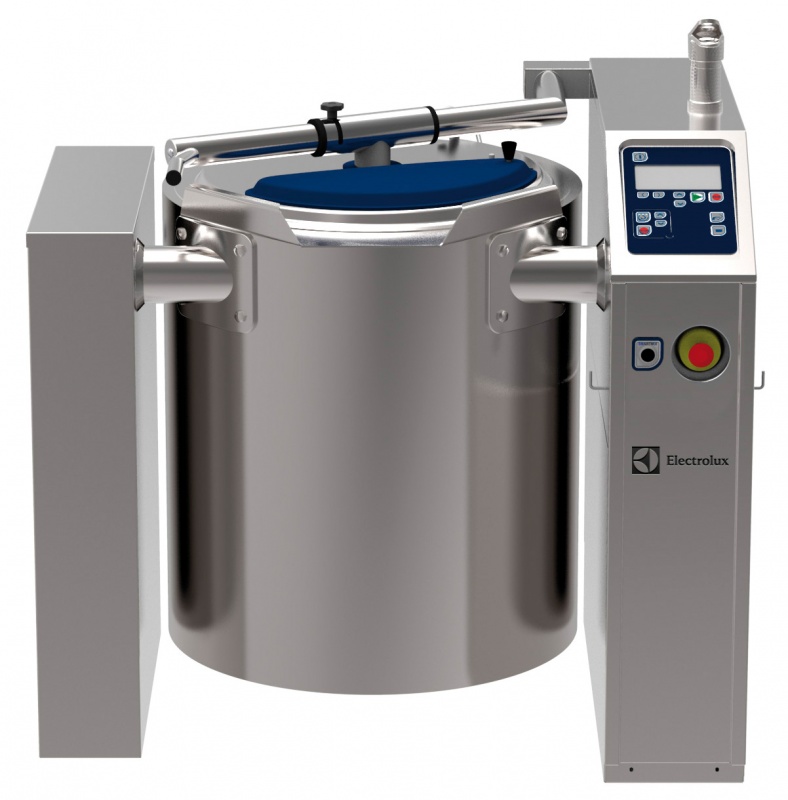

Electrolux Professional SM6V100 EL.PAN+STIRRER 100 LT, H=600, VARIOMIX (Code 232224, Alias 9AIX232224)
Electrolux Professional SM6V100 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. Bottom agitator mixes at speeds from 25 to 100 rpm. Whipping cycle up to 200 rpm. Continuous rotating or 2 rotating directions with the possibility to modify times. Step program facilitates removal of food. High thermal input and fast heat up. Electronic SMART control with possibility to store 50 programs; error message facility; display with: cooking time and temperature, water filling. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed thermal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6V100 EL.PAN+STIRRER 100 LT, H=600, VARIOMIX (Code 232224) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6V100 Specifications
- Brand: Electrolux Professional
- Model: SM6V100
- WxDxH mm: 1160x925x1050 mm
- Weight: 257 Kg
- Alias: 9AIX232224
- Factory Model: SM6V100
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 257.00 kg
- Net Width: 1160
- Net Depth: 925
- Net Height: 1050
- Europe Weight: 282.00 Kg
- Europe Width: 1,143 mm
- Europe Height: 1,295 mm
- Overseas Weight: 282.00 Kg
- Overseas Depth: 1,230 mm
- Overseas_Height: 1,295 mm
- Electrical power: 24 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6V100 Documents
- Data Sheet: Variomix Electric Boiling Pan with Stirrer 100lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232224
- CAD Drawings: 232224
- BIM/Revit: 232224
Electrolux Professional SM6V100 Shipping status
Upon Request
Electrolux Professional SM6V100 (232224)
Enjoy high-quality operation at your professional kitchen with a range of Electrolux Professional products and an electric boiling pan with a stirrer Electrolux Professional SM6V100 (232224).
A flawless performance is supplied by high-resistant materials, modernised features, and speedy processes.
Main Features
- Construction in 304 AISI stainless steel;
- Rounded-edges pan in 316 AISI stainless steel;
- Thermal insulation to reduce heating time and keep the outer surface cool;
- Saturated steam heating system (120° C) and automatic deaeration;
- A safety thermostat for water level control;
- Valve to prevent for steam pressure control;
- Motorised tilting up to 90° C with 600 height;
- Programmable water-filling process;
- Whipping cycle up to 200rpm;
- Continuous and 2-direction rotating modes with time option;
- Smart control and an electronic display with settings and 50 programmes.
Electrolux Professional SM6V100 Price
Strive for success with Maran Projekt GmbH and top Electrolux Professional proposals and buy an electric boiling pan with a stirrer Electrolux Professional SM6V100 (232224)at a great price.
Get the use of high-quality English or German-language assistance anytime when needed.
