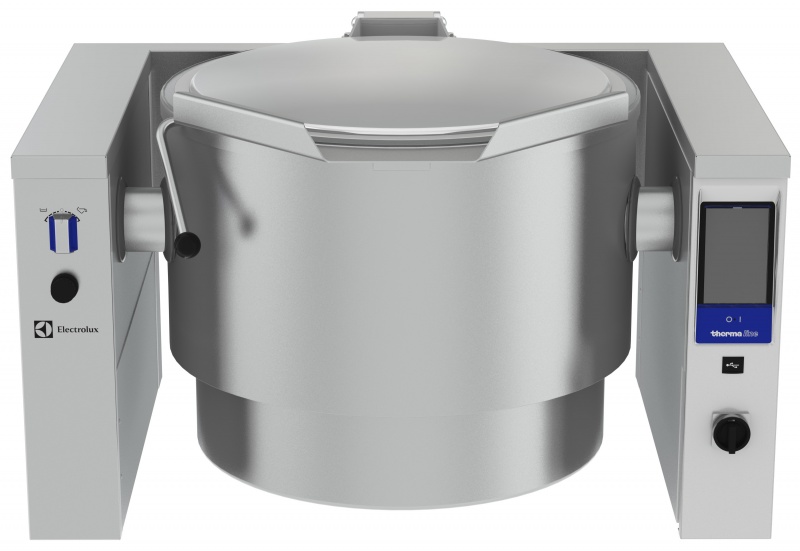

Electrolux Professional PBOT06RGEO EL.BOILING PAN/STIRR,TILT,60LT(S)FS,D900 (Code 586023, Alias 9CHG586023)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT06RGEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Stirring rotation speed 25rpm. Stirrer drive shaft included, stirrer blades to be ordered separately. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 100mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT06RGEO EL.BOILING PAN/STIRR,TILT,60LT(S)FS,D900 (Code 586023) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT06RGEO Specifications

Brand: Electrolux Professional
Model: PBOT06RGEO
WxDxH mm: 1100x900x800 mm
Weight: 200 Kg
Alias: 9CHG586023
Factory Model: PBOT06RGEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1100
Net Depth: 900
Net Height: 800
Electrical power: 12 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT06RGEO Documents

Data Sheet: Electric Tilting Boiling Pan, 60lt , Freestanding with Stirrer
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
Range Overview: ProThermetic Boiling Pans Range Overview
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586023
Spare Parts Catalogue: 586023
BIM/Revit: 586023

Shipping status

Electrolux Professional PBOT06RGEO Shipping status

Upon Request

Electrolux Professional PBOT06RGEO (586023)

Create the top efficient conditions at your professional kitchen with Electrolux Professional appliances and a tilting electric boiling pan with a stirrer Electrolux Professional PBOT06RGEO (586023).

Durable construction tailored in stainless steel is complemented with upgraded features, speedy and economic operation, and safety measures.

Main Features

Designed in 304 AISI stainless steel;
Stainless steel vessel with rounded edges;
Insulated lid;
Motorized tilting up to 90°C with speed settings;
Saturated-steam heating system (up to 125°C in the jacket);
Rotating speed of stirrer 25rpm;
Stirrer drive shaft included, blades to be ordered;
The safety valve for steam pressure control;
Safety thermostat for water level control;
TOUCH control panel;
SOFT function;
Precise cooking temperature sensor;
Cooking in a single or multiphase cycle;
Standing against the wall or free-standing.
