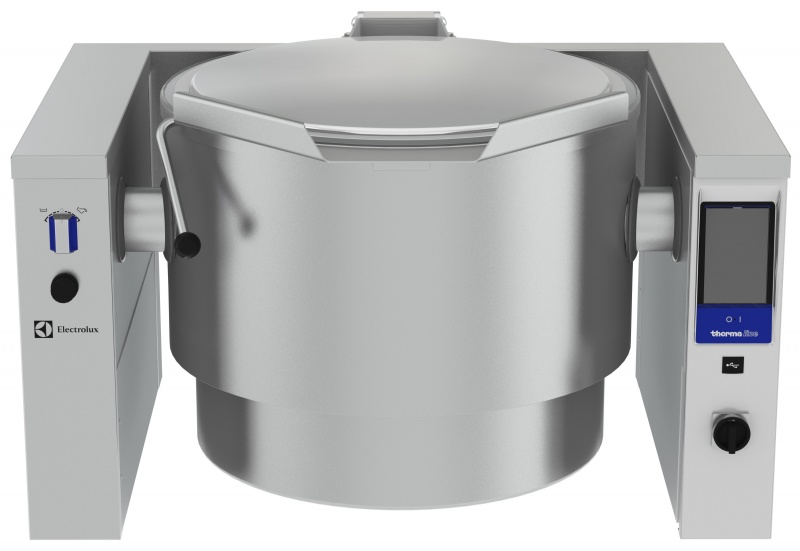

Electrolux Professional PBOT10RGEO EL.BOILING PAN/STIRR,TILT,100L(S)FS,D900 (Code 586026, Alias 9CHG586026)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT10RGEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Stirring rotation speed 21rpm. Stirrer drive shaft included, stirrer blades to be ordered separately. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 100mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT10RGEO EL.BOILING PAN/STIRR,TILT,100L(S)FS,D900 (Code 586026) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT10RGEO Specifications

Brand: Electrolux Professional
Model: PBOT10RGEO
WxDxH mm: 1200x900x800 mm
Weight: 210 Kg
Alias: 9CHG586026
Factory Model: PBOT10RGEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1200
Net Depth: 900
Net Height: 800
Electrical power: 18 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT10RGEO Documents

Data Sheet: Electric Tilting Boiling Pan, 100lt , Freestanding with Stirrer
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
Range Overview: ProThermetic Boiling Pans Range Overview
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586026
Spare Parts Catalogue: 586026
BIM/Revit: 586026

Shipping status

Electrolux Professional PBOT10RGEO Shipping status

Upon Request

Electrolux Professional PBOT10RGEO (586026)

Get your success guaranteed at your professional kitchen space with Electrolux Professional goods and services and a tilting electric boiling pan with a stirrer Electrolux Professional PBOT10RGEO (586026).

Grab all possible advances with modernised features, safe handling and maintenance, and speedy operation.

Main Features

European hygiene and food standards construction;
Rounded-edges vessel;
Balanced lid with insulation;
Motorized tilting up to 90°C with variable speed;
Indirect heating system via saturated steam (up to 125°C) and automatic deaeration;
21rpm-rotating-speed stirrer;
Included stirrer drive shaft, blades orderable;
Safety valve to avoid steam overpressure;
Safety thermostat to keep from low water level;
TOUCH control panel;
SOFT function;
A controlled cooking process with a built-in temperature sensor;
Single or multiphase cooking with adjustable temperature and recipes;
Standing against the wall or free-standing.

Electrolux Professional PBOT10RGEO Price

Reach perfection with Maran Projekt GmbH and Electrolux Professional and purchase a tilting electric boiling pan with a stirrer Electrolux Professional PBOT10RGEO (586026) at a reliable price.

Responsive support specialists are reachable 24/7 in English or German.
