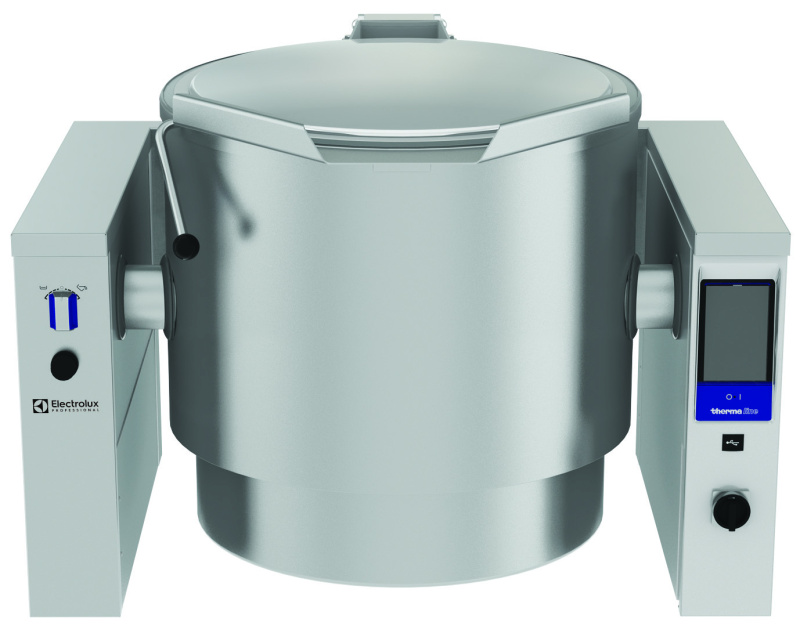

Electrolux Professional PBOT30QDIO STEAM (ELEC) BOILING PAN, PREARR. FOR STIRRER, TILTING,300L,440V,FS,MARINE (Code 587214)
Steam tilting Boiling Pan 300lt, prearranged for stirrer, GuideYou panel, freestanding - Marine. External panelling and internal frame made of 1.4301 (AISI 304) stainless steel. Can be prearranged for energy optimisation or external surveillance systems (optional). Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar. External steam feeding; 1,5 bars working pressure. Water mixing tap is available as optional accessory to make water filling and pan cleaning easier. Edge of the large pouring lip can be equipped with a strainer (option).
Buy Electrolux Professional PBOT30QDIO High Productivity Cooking Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine (Code 587214) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: PBOT30QDIO
- Weight: 430 kg
- Country of origin: Switzerland
- Net Width: 1500 mm
- Net Depth: 1000 mm
- Net Height: 700 mm
- Voltage: 440 V/3 ph/50/60 Hz
- Total Watts: 0.6 kW
- Data Sheet: Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine
- Range Overview: ProThermetic Boiling Pans Range Overview
- Brochure: thermaline Book
- User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
- Spare Parts Catalogue: 587214
- BIM/Revit: 587214
Electrolux Professional PBOT30QDIO Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine (Code 587214)
Stirring a 300-litre batch by hand isn't realistic, and pairing that scale with steam heating instead of a heavy electrical load makes sense on any vessel with steam already piped in. The Electrolux Professional PBOT30QDIO Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine (Code 587214) combines both: the largest steam-fed vessel in this range, prearranged for a 21 rpm stirrer.
The drive shaft comes fitted at the factory, with blades ordered separately to match your recipes, while indirect steam heating through the jacket keeps large loads at an even 125°C rather than scorching at the base. Total electrical draw stays at just 0.6 kW even with the stirrer motor running, since the steam supply does the real work.
Specifications
- Steam Tilting Boiling Pan, 300lt, freestanding, hygienic profile, prearranged for stirrer;
- Stirrer drive shaft included, rotation speed 21 rpm, blades ordered separately;
- External steam supply, working pressure 1.5 bar;
- Electrical consumption just 0.6 kW for controls and stirrer motor;
- Cooking vessel in AISI 316L stainless steel with directional pouring lip;
- Motorized variable tilting with SOFT STOP, tilts over 90° for pouring and cleaning;
- Minimised gaps on external panelling for easier cleaning to strict hygiene standards;
- TOUCH control panel with GuideYou panel for multiphase recipes;
- USB port for software updates, recipe transfer, and HACCP data download;
- Installation options: freestanding on feet, on a plinth, or standing against a wall;
- Vessel diameter 900 mm, depth 570 mm, net vessel capacity 300 litres;
- Net weight 430 kg.
Electrolux Professional PBOT30QDIO Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine (Code 587214) Price
Get a quote for the Electrolux Professional PBOT30QDIO Steam Tilting Boiling Pan, 300lt Freestanding, Hygienic profile with Stirrer-Marine (Code 587214) price from Maran Projekt GmbH, delivered to shipyards worldwide.
Our team has more than 25 years of experience as an authorized Electrolux Professional dealer, working with clients across six continents and answering in English, German, or another language on request. Free manuals for any Electrolux Professional appliance are available on request.
