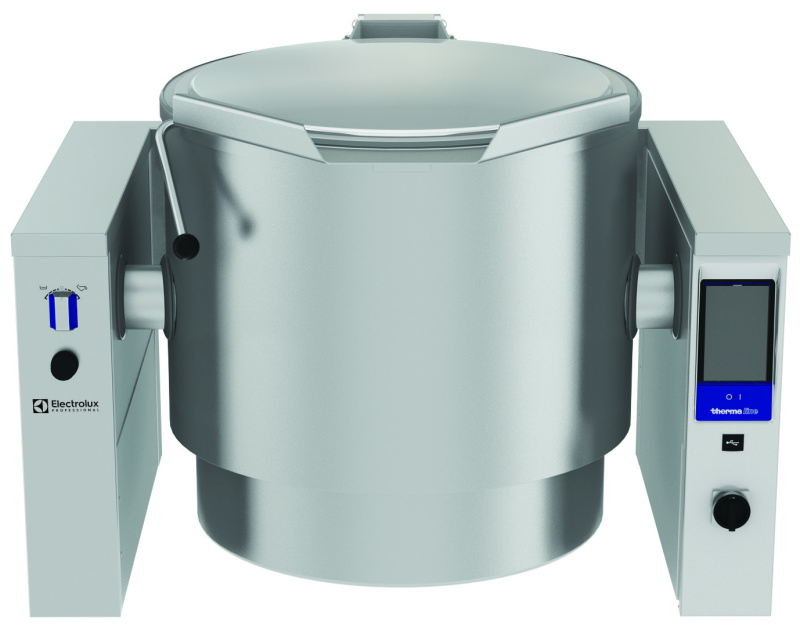

Electrolux Professional PBOT20SWJO High Productivity Cooking Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183)
Steam tilting Boiling Pan 200lt with electronic steam control, GuideYou panel, wall mounted - Marine. External panelling and internal frame made of 1.4301 (AISI 304) stainless steel. Can be prearranged for energy optimisation or external surveillance systems (optional). Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar. External steam feeding; 1,5 bars working pressure. Water mixing tap is available as optional accessory to make water filling and pan cleaning easier. Edge of the large pouring lip can be equipped with a strainer (option).
Buy Electrolux Professional PBOT20SWJO High Productivity Cooking Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: PBOT20SWJO
- Weight: 360 kg
- Country of origin: Switzerland
- Net Width: 1400 mm
- Net Depth: 1000 mm
- Net Height: 400 mm
- Voltage: 230 V/1 ph/50/60 Hz
- Total Watts: 0.2 kW
- Data Sheet: 587183
- Brochure: BR-9JE00231
- Range Overview: RAN-9JE00028
- User Maintenance: 05UMB09AB__ENG0
- CAD Drawings: 587183
- Spare Parts Catalogue: 599A2B900
- BIM/Revit: 587183
Electrolux Professional PBOT20SWJO Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183)
The top-capacity steam-fed pan in this range doesn't have to eat up floor space just because it's the biggest one. The Electrolux Professional PBOT20SWJO Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183) puts 200 litres of vessel capacity into a wall-mounted install, running off the same external steam feed as the rest of the lineup.
At just 0.2 kW of electrical draw, it leaves the heavy lifting to the ship's steam supply while an 800 mm vessel handles the largest batches this range offers. Control features stay identical to the smaller wall-mounted models, so operators scaling up don't face a learning curve.
Main Features
- Steam Tilting Boiling Pan, 200lt, wall mounted, marine configuration;
- External steam supply, working pressure 1.5 bar;
- Electrical consumption just 0.2 kW for controls;
- Cooking vessel in AISI 316L stainless steel with directional pouring lip;
- Motorized variable tilting with SOFT STOP, tilts over 90° for pouring and cleaning;
- TOUCH control panel with GuideYou panel for multiphase recipes;
- USB port for software updates, recipe transfer, and HACCP data download;
- IPX6 water resistant construction;
- Working temperature range 50-110°C;
- Vessel diameter 800 mm, depth 490 mm, net vessel capacity 200 litres;
- Net weight 360 kg.
Electrolux Professional PBOT20SWJO Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183) Price
Maran Projekt GmbH provides the Electrolux Professional PBOT20SWJO Steam Tilting Boiling Pan, 200lt Wall mounted, Electronic-Marine (Code 587183) price and worldwide shipyard delivery.
Our specialists have more than 25 years of experience as an official Electrolux Professional dealer, and Electrolux Professional backs every unit with a service network of over 200 centers worldwide. Get in touch in English, German, or another language you prefer.
