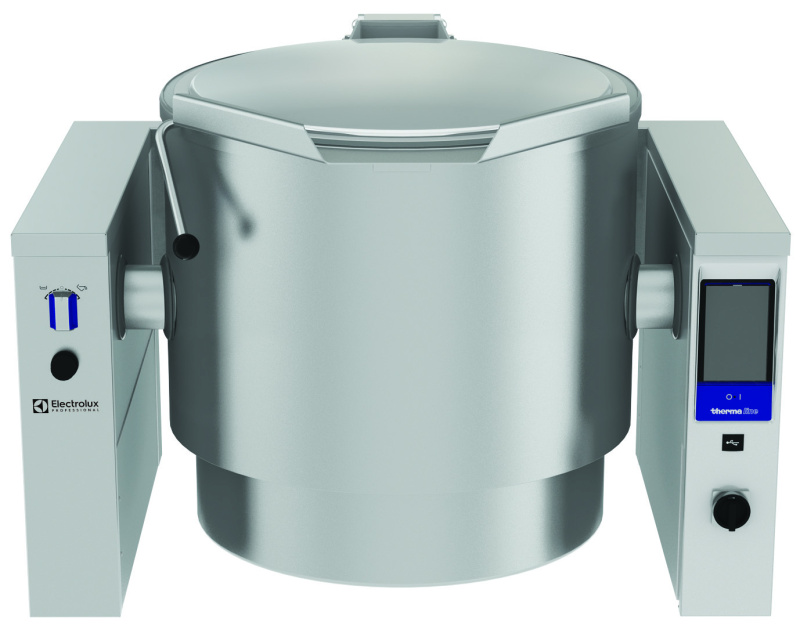

Electrolux Professional PBOT30SWJO High Productivity Cooking Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185)
Steam tilting Boiling Pan 300lt with electronic steam control, GuideYou panel, wall mounted - Marine. External panelling and internal frame made of 1.4301 (AISI 304) stainless steel. Can be prearranged for energy optimisation or external surveillance systems (optional). Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar. External steam feeding; 1,5 bars working pressure. Water mixing tap is available as optional accessory to make water filling and pan cleaning easier. Edge of the large pouring lip can be equipped with a strainer (option).
Buy Electrolux Professional PBOT30SWJO High Productivity Cooking Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: PBOT30SWJO
- Weight: 390 kg
- Country of origin: Switzerland
- Net Width: 1500 mm
- Net Depth: 1000 mm
- Net Height: 400 mm
- Voltage: 230 V/1 ph/50/60 Hz
- Total Watts: 0.2 kW
- Data Sheet: 587185
- Brochure: BR-9JE00231
- Range Overview: RAN-9JE00028
- User Maintenance: 05UMB09AB__ENG0
- CAD Drawings: 587185
- Spare Parts Catalogue: 599A2B900
- BIM/Revit: 587185
Electrolux Professional PBOT30SWJO Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185)
This is the largest wall-mounted pan in the steam-fed range: 300 litres of vessel capacity running off external ship steam, with a footprint that still keeps the floor clear. The Electrolux Professional PBOT30SWJO Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185) draws just 0.2 kW of electricity, leaving the heavy lifting to the vessel's steam supply.
A 900 mm vessel handles continuous, high-volume batches, useful on ships running back-to-back meal services around the clock. Every control feature carries over from the rest of the steam-fed lineup, so crews moving up from a smaller wall-mounted pan won't face any surprises.
Key features
- Steam Tilting Boiling Pan, 300lt, wall mounted, marine configuration;
- External steam supply, working pressure 1.5 bar;
- Electrical consumption just 0.2 kW for controls;
- Cooking vessel in AISI 316L stainless steel with directional pouring lip;
- Motorized variable tilting with SOFT STOP, tilts over 90° for pouring and cleaning;
- TOUCH control panel with GuideYou panel for multiphase recipes;
- USB port for software updates, recipe transfer, and HACCP data download;
- IPX6 water resistant construction;
- Working temperature range 50-110°C;
- Vessel diameter 900 mm, depth 570 mm, net vessel capacity 300 litres;
- Net weight 390 kg.
Electrolux Professional PBOT30SWJO Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185) Price
Maran Projekt GmbH quotes the Electrolux Professional PBOT30SWJO Steam Tilting Boiling Pan, 300lt Wall mounted, Electronic-Marine (Code 587185) price, delivered to shipyards and ports worldwide.
As an official Electrolux Professional dealer for more than 25 years, we support clients across six continents and correspond in English, German, or another language you prefer. Free manuals for any Electrolux Professional appliance are available on request.
