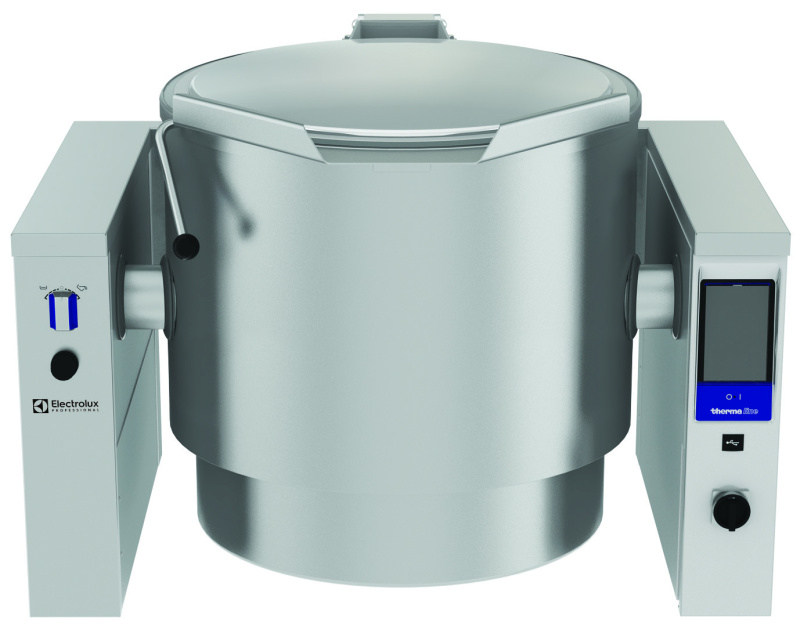

Electrolux Professional PBOT20RWIO High Productivity Cooking Electric Tilting Boiling Pan, 200lt , Wall mounted with Stirrer-Marine (Code 587163)
Electric tilting Boiling Pan 200lt prearranged for stirrer, GuideYou panel, wall mounted - Marine. External panelling and internal frame made of 1.4301 (AISI 304) stainless steel. Can be prearranged for energy optimisation or external surveillance systems (optional). Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar. Water mixing tap is available as optional accessory to make water filling and pan cleaning easier. Edge of the large pouring lip can be equipped with a strainer (option).
Buy Electrolux Professional PBOT20RWIO High Productivity Cooking Electric Tilting Boiling Pan, 200lt , Wall mounted with Stirrer-Marine (Code 587163) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: PBOT20RWIO
- Weight: 400 kg
- Country of origin: Switzerland
- Net Width: 1400 mm
- Net Depth: 1000 mm
- Net Height: 400 mm
- Voltage: 440 V/3 ph/50/60 Hz
- Total Watts: 30.6 kW
- Data Sheet: 587163
- Range Overview: RAN-9JE00030
- Brochure: CAT13
- User Maintenance: 05UMB09AB__ENG0
- CAD Drawings: 587163
- Spare Parts Catalogue: 599A2B700
- BIM/Revit: 587163
Upon Request
Electrolux Professional PBOT20RWIO Electric Tilting Boiling Pan, 200lt, Wall mounted with Stirrer-Marine (Code 587163)
At 200 litres, stirring by hand simply isn't practical, and cruise-scale galleys running this pan flat out need the agitation automated. The Electrolux Professional PBOT20RWIO Electric Tilting Boiling Pan, 200lt, Wall mounted with Stirrer-Marine (Code 587163) tops out the wall-mounted range with a prearranged stirrer drive built right in.
An 800 mm vessel handles large-format batches while the 21 rpm drive keeps thick sauces and stocks moving evenly, cutting the risk of scorching on the base that comes with a pan this size. Everything from the indirect steam jacket to the TOUCH control panel carries over from the rest of this lineup, so operators moving up from a smaller unit find the controls familiar.
Main Features
- Electric Tilting Boiling Pan, 200lt, wall mounted, prearranged for stirrer;
- Stirrer drive shaft included, rotation speed 21 rpm, blades ordered separately;
- Cooking vessel in AISI 316L stainless steel with directional pouring lip;
- Double jacket rated for 1.5 bar, working temperature 50-110°C;
- Motorized variable tilting with SOFT STOP, tilts over 90° for pouring and cleaning;
- TOUCH control panel with 9 power levels from simmering to heavy boiling;
- GuideYou panel for multiphase recipes and maintenance reminders;
- USB port for software updates, recipe transfer, and HACCP data download;
- IPX6 water resistant construction;
- Vessel diameter 800 mm, net vessel capacity 200 litres;
- Total power 30.6 kW, net weight 400 kg.
Electrolux Professional PBOT20RWIO Electric Tilting Boiling Pan, 200lt, Wall mounted with Stirrer-Marine (Code 587163) Price
Maran Projekt GmbH quotes the Electrolux Professional PBOT20RWIO Electric Tilting Boiling Pan, 200lt, Wall mounted with Stirrer-Marine (Code 587163) price and arranges delivery to ports and shipyards worldwide.
With more than 25 years as an official Electrolux Professional dealer, our specialists are ready to correspond in English, German, or another language you prefer, and Electrolux Professional's service network covers over 200 centers in most countries.
