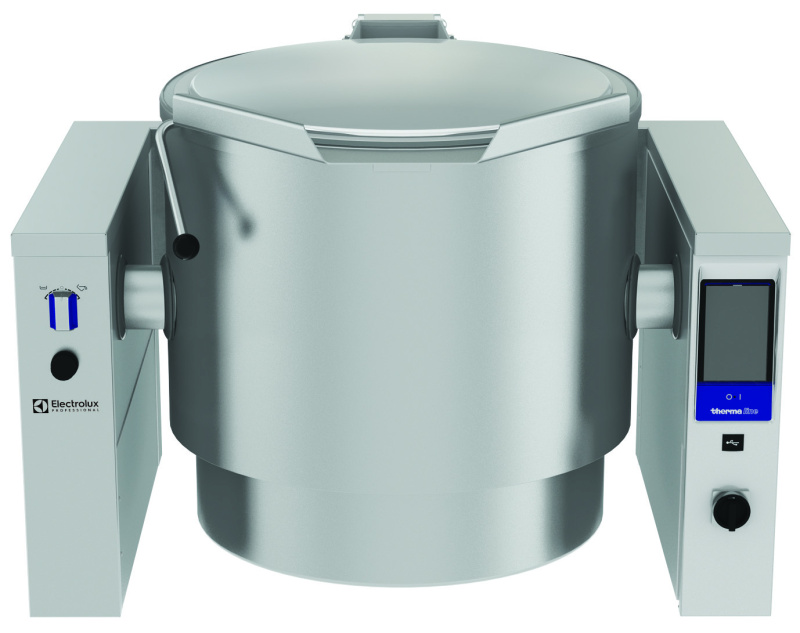

Electrolux Professional PBOT20RDIO High Productivity Cooking Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162)
Electric tilting Boiling Pan 200lt prearranged for stirrer, GuideYou panel, freestanding - Marine. External panelling and internal frame made of 1.4301 (AISI 304) stainless steel. Can be prearranged for energy optimisation or external surveillance systems (optional). Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar. Water mixing tap is available as optional accessory to make water filling and pan cleaning easier. Edge of the large pouring lip can be equipped with a strainer (option).
Buy Electrolux Professional PBOT20RDIO High Productivity Cooking Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162) online at a favorable price (prezzo, prix, precio, preço).
- Brand: Electrolux Professional
- Model: PBOT20RDIO
- Weight: 400 kg
- Country of origin: Switzerland
- Net Width: 1400 mm
- Net Depth: 1000 mm
- Net Height: 700 mm
- Voltage: 440 V/3 ph/50/60 Hz
- Total Watts: 30.6 kW
- Data Sheet: 587162
- Range Overview: RAN-9JE00030
- Brochure: CAT13
- User Maintenance: 05UMB09AB__ENG0
- CAD Drawings: 587162
- Spare Parts Catalogue: 599A2B700
- BIM/Revit: 587162
Upon Request
Electrolux Professional PBOT20RDIO Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162)
This is the top of the boiling pan range for a reason: 200 litres, automated stirring, freestanding placement, and a hygienic build that clears strict marine inspection all in one unit. The Electrolux Professional PBOT20RDIO Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162) is built for the largest galleys running the busiest schedules.
The 21 rpm stirrer drive keeps thick batches moving evenly across the full 800 mm vessel, cutting the labor and the risk that comes with manually stirring that much volume. Minimised panel gaps and the same indirect steam jacket used throughout this range mean it fits straight into an existing marine kitchen's cleaning routine without retraining crew.
Specifications
- Electric Tilting Boiling Pan, 200lt, hygienic profile, freestanding, prearranged for stirrer;
- Stirrer drive shaft included, rotation speed 21 rpm, blades ordered separately;
- Cooking vessel in AISI 316L stainless steel with directional pouring lip;
- Double jacket rated for 1.5 bar, working temperature 50-110°C;
- Motorized variable tilting with SOFT STOP, tilts over 90° for pouring and cleaning;
- Minimised gaps on external panelling for easier cleaning to strict hygiene standards;
- TOUCH control panel with 9 power levels from simmering to heavy boiling;
- GuideYou panel for multiphase recipes and maintenance reminders;
- USB port for software updates, recipe transfer, and HACCP data download;
- Installation options: freestanding on feet, on a plinth, or standing against a wall;
- Vessel diameter 800 mm, net vessel capacity 200 litres;
- Total power 30.6 kW, net weight 400 kg.
Electrolux Professional PBOT20RDIO Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162) Price
Get in touch with Maran Projekt GmbH for the Electrolux Professional PBOT20RDIO Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding with Stirrer-Marine (Code 587162) price, shipped to shipyards and ports worldwide.
We've operated as an authorized Electrolux Professional dealer for over 25 years, serving more than 1,500 clients across six continents, with specialists ready to answer in English, German, or another language you need.
