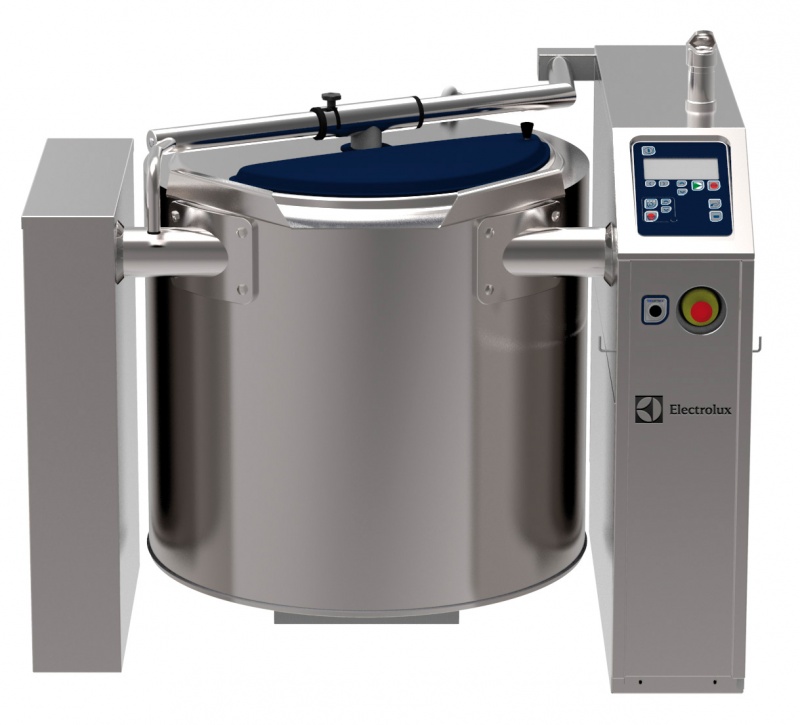

Electrolux Professional SM6B200 ELECTRIC BOILING PAN 200 LT,H=600, SMART (Code 232221, Alias 9AIX232221)
Electrolux Professional SM6B200 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. High thermal input and fast heat up. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed thermal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6B200 ELECTRIC BOILING PAN 200 LT,H=600, SMART (Code 232221) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6B200 Specifications
- Brand: Electrolux Professional
- Model: SM6B200
- WxDxH mm: 1345x1070x1050 mm
- Weight: 284 Kg
- Alias: 9AIX232221
- Factory Model: SM6B200
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 284.00 kg
- Net Width: 1345
- Net Depth: 1070
- Net Height: 1050
- Europe Weight: 315.00 Kg
- Europe Width: 1,550 mm
- Europe Height: 1,350 mm
- Overseas Weight: 315.00 Kg
- Overseas Depth: 1,370 mm
- Overseas_Height: 1,350 mm
- Electrical power: 37 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6B200 Documents
- Data Sheet: Smart Electric Boiling Pan 200lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232221
- CAD Drawings: 232221
- BIM/Revit: 232221
Electrolux Professional SM6B200 Shipping status
Upon Request
Electrolux Professional SM6B200 (232221)
Enjoy technological privileges at your professional kitchen with Electrolux Professional offerings and an electric boiling pan Electrolux Professional SM6B200 (232221).
A 200l boiling pan will allow you to cook safely, beneficially, and with the lowest energy waste.
Main Features
- Constructed in stainless steel;
- 316 AISI stainless steel pan with rounded edges;
- Thermal insulation;
- The heating system within saturated steam (120° C) and automatic deaeration;
- A safety thermostat;
- Valve to keep from the steam overpressure;
- Motorised tilting up to 90° C with 600 height;
- The water-filling process can be programmed;
- Orderable options: automatic water filling, food sensor, spray gun.
Electrolux Professional SM6B200 Price
Rely on Maran Projekt GmbH experts in selecting and purchasing privileged Electrolux Professional goods and services and an electric boiling pan Electrolux Professional SM6B200 (232221) at a pleasant price.
English or German-speaking specialists from the highly qualified support team will come to help you at any time of the day or night with an instant response feature.
