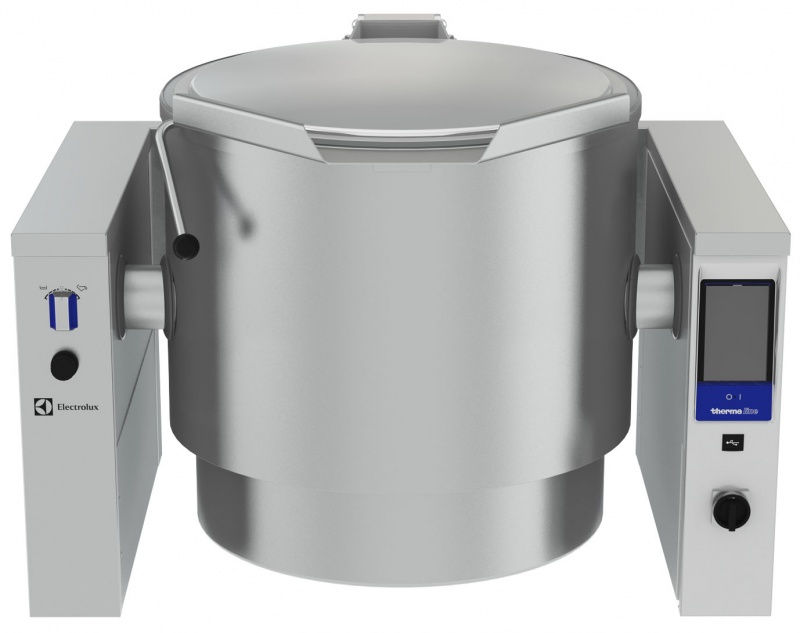

Electrolux Professional PBOT20EDEO EL.BOILING PAN,TILTING,200L(H),FS,D=1000 (Code 586012, Alias 9CHG586012)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT20EDEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 200mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT20EDEO EL.BOILING PAN,TILTING,200L(H),FS,D=1000 (Code 586012) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT20EDEO Specifications

Brand: Electrolux Professional
Model: PBOT20EDEO
WxDxH mm: 1400x1000x700 mm
Weight: 360 Kg
Alias: 9CHG586012
Factory Model: PBOT20EDEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1400
Net Depth: 1000
Net Height: 700
Electrical power: 30 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT20EDEO Documents

Data Sheet: Electric Tilting Boiling Pan, 200lt Hygienic Profile, Freestanding
Brochure: EPR Prothermetic Boiling Pan Brochure - 2021
Range Overview: ProThermetic Boiling Pans Range Overview
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586012
Spare Parts Catalogue: 586012
BIM/Revit: 586012

Shipping status

Electrolux Professional PBOT20EDEO Shipping status

Upon Request

Electrolux Professional PBOT20EDEO (586012)

Upgrade your professional kitchen performance with the latest Electrolux Professional offerings and a tilting electric boiling pan Electrolux Professional PBOT20EDEO (586012).

High-resistant construction, top-notch features, safety operation and easy maintenance are combined to satisfy constantly growing needs and desires.

Main Features

304 AISI stainless steel and 316 AISI stainless steel construction and components;
Motorized tilting up to 90°C with alterable speed modes;
Base and side-walls heating system (up to 125°Cin the jacket) and automatic deaeration cycle;
Steam overpressure avoided with the safety valve;
Low water level prevented with the safety thermostat;
TOUCH control panel;
SOFT function;
Temperature sensor to control the cooking process precisely;
Single or multiphase cooking cycle with adjustable temperature modes and recipes;
Standing against the wall or free-standing.
