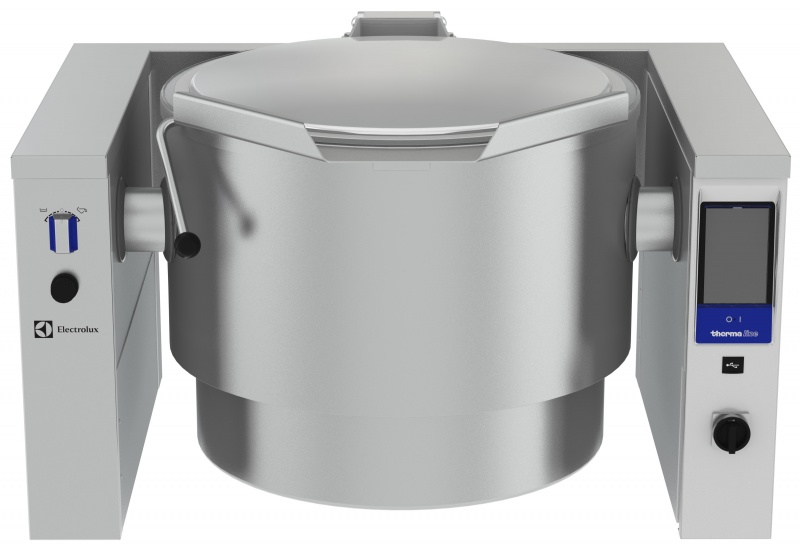

Electrolux Professional PBOT15ECEO EL.BOILING PAN,TILTING,150LT(H),FS,D=900 (Code 586009, Alias 9CHG586009)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT15ECEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 200mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT15ECEO EL.BOILING PAN,TILTING,150LT(H),FS,D=900 (Code 586009) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT15ECEO Specifications

Brand: Electrolux Professional
Model: PBOT15ECEO
WxDxH mm: 1300x900x700 mm
Weight: 260 Kg
Alias: 9CHG586009
Factory Model: PBOT15ECEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1300
Net Depth: 900
Net Height: 700
Electrical power: 24 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT15ECEO Documents

Data Sheet: Electric Tilting Boiling Pan, 150lt Hygienic Profile, Freestanding
Range Overview: ProThermetic Boiling Pans Range Overview
Brochure: thermaline Book
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586009
Spare Parts Catalogue: 586009
BIM/Revit: 586009

Shipping status

Electrolux Professional PBOT15ECEO Shipping status

Upon Request

Electrolux Professional PBOT15ECEO (586009)

Increase your professional kitchen potential with Electrolux Professional goods and services and a tilting electric boiling pan Electrolux Professional PBOT15ECEO (586009).

Perfect operation is possible with top-notch features, high-resistant construction, and simple handling and maintenance.

Main Features

Pan and construction in stainless steel;
Durable vessel with safety measures;
Counterbalanced lid;
Motorized tilting up to 90°C with adjustable speed modes;
Integral heating system via saturated steam (up to 125°Cin the jacket) and automatic deaeration system;
The safety valve for steam overpressure monitoring;
Safety thermostat for low water level monitoring;
TOUCH control panel;
SOFT function;
Temperature sensor to supply precise cooking process;
Cooking in a single or multiphase cycle with temperature modes and recipes to choose from;
Standing against the wall or free-standing.
