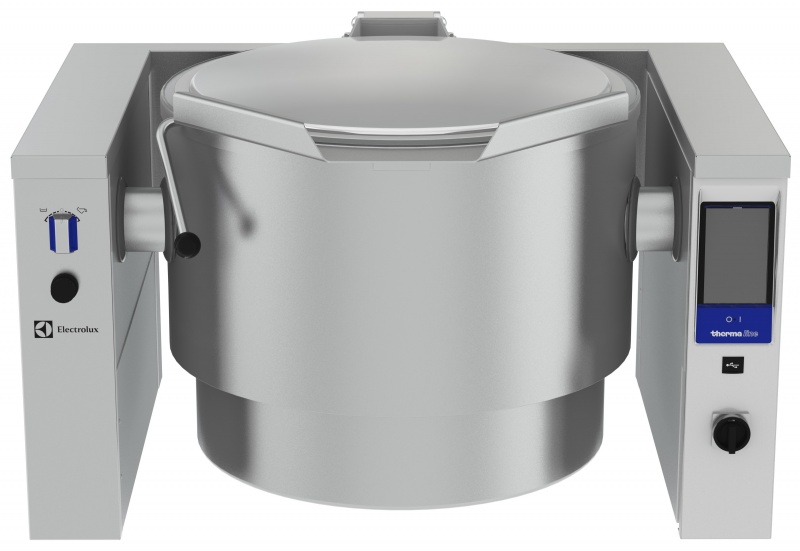

Electrolux Professional PBOT06EEEO EL. BOILING PAN,TILTING,60LT,(S),FS (Code 586001, Alias 9CHG586001)

Product
Specifications
Documents
Shipping status

Product

Electrolux Professional PBOT06EEEO Product Features

AISI 304 stainless steel construction. Deep drawn vessel in AISI 316 stainless steel. Insulated and counterbalanced lid. Motorized tilting with variable speed control. Pan can be tilted beyond 90° to completely empty the food. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a maximum temperature of 125°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level in the double jacket. TOUCH control panel. SOFT function. Possibility to store recipes in single or multiphase cooking process, with different temperature settings. Built in temperature sensors for precise control of cooking process. IPX6 water resistant. Configuration: Free-standing or Standing against a wall. Installation options (not included): floor mounted on 100mm high feet or a plinth which can be either steel or masonry construction.
Buy Electrolux Professional PBOT06EEEO EL. BOILING PAN,TILTING,60LT,(S),FS (Code 586001) online at a favorable price (prezzo, prix, precio, preço).

Specifications

Electrolux Professional PBOT06EEEO Specifications

Brand: Electrolux Professional
Model: PBOT06EEEO
WxDxH mm: 1100x800x800 mm
Weight: 170 Kg
Alias: 9CHG586001
Factory Model: PBOT06EEEO
Customs_Class: 8419500090
Country of origin: Switzerland
Net Width: 1100
Net Depth: 800
Net Height: 800
Electrical power: 12 Kw
Voltage: 400 V
Frequency: 50/60 Hz
Phases: 3N

Documents

Electrolux Professional PBOT06EEEO Documents

Data Sheet: Electric Tilting Boiling Pan, 60lt , Freestanding
Range Overview: ProThermetic Boiling Pans Range Overview
Brochure: thermaline Book
User Maintenance: EPR_User maintenance guide_ProThermetic Boiling Pan
CAD Drawings: 586001
Spare Parts Catalogue: 586001
BIM/Revit: 586001

Shipping status

Electrolux Professional PBOT06EEEO Shipping status

Upon Request

Electrolux Professional PBOT06EEEO (586001)

Feel confident in your professional kitchen success with Electrolux Professional and a tilting electric boiling pan Electrolux Professional PBOT06EEEO (586001).

A flawless performance is delivered by a combination of high-quality materials, automatized features with adjustable options, and simplified handling on top.

Main Features

Tailored in 304 AISI stainless steel;
High-resistant vessel with rounded edges;
Counterbalanced lid;
Motorized tilting up to 90°C with modifiable speed;
Indirect heating system cycle (up to 125°C) and automatic deaeration system;
Safety valve to keep steam overpressure in limits;
Safety thermostat to keep from water level in limits;
TOUCH control panel;
SOFT function;
Temperature sensor to control the cooking process precisely;
Single or multiphase cooking cycle with selectable temperature and recipes;
Standing against the wall or free-standing.

Electrolux Professional PBOT06EEEO

Maran Projekt GmbH is glad to supply with the top Electrolux Professional goods and services and a tilting electric boiling pan Electrolux Professional PBOT06EEEO (586001) at a reachable price.

Specialists will help you at any time of the day or night in English or German with any related issue.
