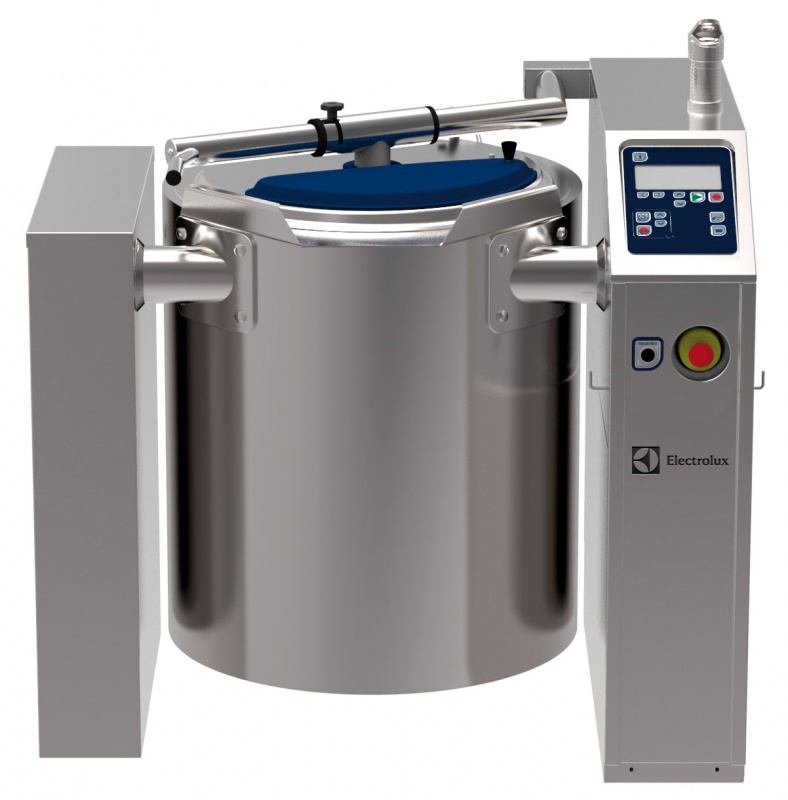

Electrolux Professional SM6B100 ELECTRIC BOILING PAN 100 LT,H=600,SMART (Code 232219, Alias 9AIX232219)
Electrolux Professional SM6B100 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. High thermal input and fast heat up. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed thermal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6B100 ELECTRIC BOILING PAN 100 LT,H=600,SMART (Code 232219) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6B100 Specifications
- Brand: Electrolux Professional
- Model: SM6B100
- WxDxH mm: 1160x925x1050 mm
- Weight: 217 Kg
- Alias: 9AIX232219
- Factory Model: SM6B100
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 217.00 kg
- Net Width: 1160
- Net Depth: 925
- Net Height: 1050
- Europe Weight: 239.00 Kg
- Europe Width: 1,143 mm
- Europe Height: 1,295 mm
- Overseas Weight: 239.00 Kg
- Overseas Depth: 1,230 mm
- Overseas_Height: 1,295 mm
- Electrical power: 22 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6B100 Documents
- Data Sheet: Smart Electric Boiling Pan 100lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232219
- CAD Drawings: 232219
- BIM/Revit: 232219
Electrolux Professional SM6B100 Shipping status
Upon Request
Electrolux Professional SM6B100 (232219)
Move your professional kitchen to success with the hottest Electrolux Professional appliances and an electric boiling pan Electrolux Professional SM6B100 (232219).
Programmable operation, safety control features, and simplified control and monitoring will add to your profits.
Main Features
- Stainless steel surfaces and elements;
- 316 AISI stainless steel pan with rounded edges;
- Thermal insulation;
- Saturated steam heating system (120° C) and automatic deaeration;
- A safety thermostat to monitor water level;
- Valve to control steam pressure;
- Motorised tilting up to 90° C with 600 height
- The water-filling process with programme feature.;
- Simplified cleaning and maintenance;
- Orderable options: automatic water filling, food sensor, spray gun.
Electrolux Professional SM6B100 Price
Maran Projekt GmbH is your perfect partner who will supply you with top Electrolux Professional selection and an electric pan Electrolux Professional SM6B100 (232219) at a premium price.
Highly-qualified support assistants are reachable at any time of the day or night in English or German with an instant response feature.
