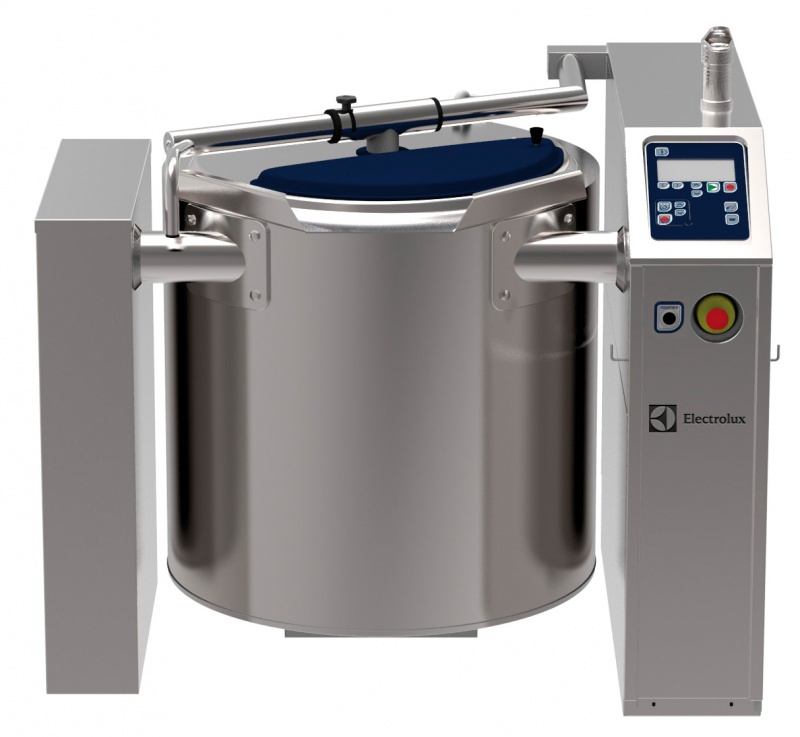

Electrolux Professional SM6B150 ELECTRIC BOILING PAN 150 LTH=600, SMART (Code 232220, Alias 9AIX232220)
Electrolux Professional SM6B150 Product Features
AISI 304 stainless steel construction; deep drawn pan with rounded edges manufactured from AISI 316 stainless steel. Pan can be tilted beyond 90° to completely empty the food. Motorised tilting with tilting axis located at the front of the pan to keep the pouring lip high and allow tall vessels to be filled. Food is uniformly heated via the base and the side walls of the pan by an indirect heating system using integrally generated saturated steam at a temperature of 120°C in a jacket with an automatic deaeration system. Safety valve avoids overpressure of the steam in the jacket. Safety thermostat protects against low water level. Max pressure at 1,5 bar. Programmable water filling system. High thermal input and fast heat up. Heavy duty balanced stainless steel lid, easy to remove and turn to facilitate cleaning. The insulation allows a lower temperature on the outer panels. The foamed thermal insulation guarantees a cool upper edge of the cooking vessel surface. IPX5 water protection. For freestanding installation one left column is necessary for each unit. 600mm tilitng height.
Buy Electrolux Professional SM6B150 ELECTRIC BOILING PAN 150 LTH=600, SMART (Code 232220) online at a favorable price (prezzo, prix, precio, preço).
Electrolux Professional SM6B150 Specifications
- Brand: Electrolux Professional
- Model: SM6B150
- WxDxH mm: 1300x1070x1050 mm
- Weight: 255 Kg
- Alias: 9AIX232220
- Factory Model: SM6B150
- WEEE directive product: Y
- Customs_Class: 8419818090
- Country of origin: Sweden
- Net Weight: 255.00 kg
- Net Width: 1300
- Net Depth: 1070
- Net Height: 1050
- Europe Weight: 285.00 Kg
- Europe Width: 1,550 mm
- Europe Height: 1,350 mm
- Overseas Weight: 285.00 Kg
- Overseas Depth: 1,370 mm
- Overseas_Height: 1,350 mm
- Electrical power: 30 Kw
- Voltage: 400 V
- Frequency: 50 Hz
- Phases: 3N
Electrolux Professional SM6B150 Documents
- Data Sheet: Smart Electric Boiling Pan 150lt, 600mm tilting height
- Leaflet: EPR Smart Boiling Pans leaflet 2020
- Spare Parts Catalogue: 232220
- CAD Drawings: 232220
- BIM/Revit: 232220
Electrolux Professional SM6B150 Shipping status
Upon Request
Electrolux Professional SM6B150 (232220)
Turn your professional kitchen performance into highly advanceable with the latest Electrolux Professional equipment and an electric boiling pan Electrolux Professional SM6B150 (232220).
Reduce energy waste, enjoy simple maintenance, and exploit high-tech features of 150l boiling pan for your delight and benefits.
Main Features
- Construction in 304 AISI stainless steel;
- 316 AISI stainless steel pan with rounded edges;
- Thermal insulation;
- Base and side-walls heating system (120° C) and automatic deaeration;
- A safety thermostat to prevent low water level;
- Steam overpressure control;
- Motorised tilting up to 90° C with 600 height
- The water-filling process to be programmed;
- Orderable options: automatic water filling, food sensor, spray gun.
Electrolux Professional SM6B150 Price
Maran Projekt GmbH specialists will provide you with the most beneficial Electrolux Professional offerings and an electric boiling pan Electrolux Professional SM6B150 (232220) at a advancable price.
English or German-speaking support professionals will help you to make the right decision 24/7 with an instant response feature.
